Karrier ST205/75R14 D Load Range 14″ Galvanized Tire & Wheel 65 psi

This item is used on our PT-2628 Trailer Models, but is also an upgradable option for all Pontoon Trailer Models. Speed rating is 81 mph.

MODEL: CFT175DLRD-G

Used on

Upgrade for

General

14″ Galvanized Winch Assembly w/ RAM 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a RAM 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH800G

Used on

PWT-800G

General

14″ Galvanized Winch Post

This item is used as part of 14" Galvanized Winch Assemblies for Single Galvanized PWT Trailers.

14" Galvanized Winch Assembly w/ DL900 lb Winch

14″ Galvanized Winch Assembly w/ RAM 600 lb Winch

MODEL: CFWNCHPOST-1000G

Used on

General

14″ Galvanized Winch Assembly w/ DL 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a Dutton-Lainson 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit. When mounted, the standard height for the bow roller is 12", but it can be adjusted to accommodate your particular boat.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH1000G

Used on

General

15' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the PWT-800 trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH14

Used on

General

1500 lb Black Powder Coated PWC Trailer 545 Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-1000B, and the PWT-1100B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1500B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.19"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Side Crank Swivel Jack - Dutton-Lainson

• Dutton-Lainson swivel marine tongue jack for boat and other trailer applications
• 1,500 lb. capacity
• 24-3/4" maximum tongue height
• Side wind handle with extra heavy screw drive and ergonomic handle grip
• Heavy duty polypropylene 8" diameter slotted wheel resists flat spots and cold weather cracking
• Zinc plated finish for additional rust resistance and longer life
• Easily swivels up for towing or down for stowing and locks in place in either position
• Reinforced wheel bracket for additional strength
• Includes all necessary bolt-on mounting hardware
• Made in the U.S.A.

Dutton-Lainson Model: 6850

MODEL: CFJACKSIDE-6850

Used On

PT-2224
PT-2426
PT-2628

General

17' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH16

Used on

General

192″ Black Flex Hose Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46238-192

MODEL: CFBRKELINE-192(BLK)

Used on

General

192″ Grey Poly Flex Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-192

MODEL: CFBRKELINE-192(GREY)

Used on

General

2 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayak/canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable

- 2x2x11 gauge upright bracing for universal fit

- 2x2x14 gauge cross braces

This is a conversion kit only and requires a trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

Kayak Setup - CFKIT-KAY(2)

• 2x 24" Uprights
• 2x 60" Crossbeams with Strap Assist and End Caps

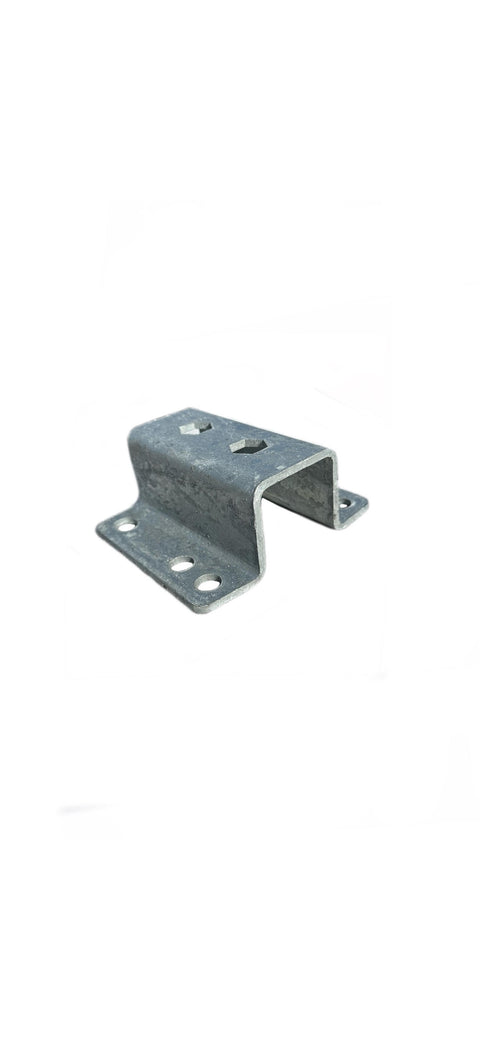

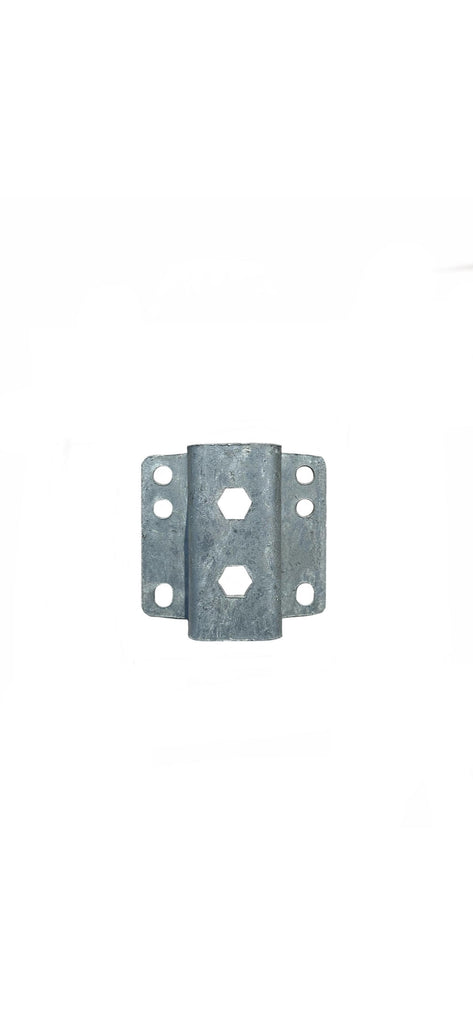

• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for use with Tie Downs
• 8x Galvanized Lock Nuts for locking in Eye Bolts

Canoe Setup - CFKIT-CAN(2)

• 2x 24" Uprights
• 2x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for Securing Tie Downs
• 8x Galvanized Lock Nuts for Securing Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

2 x 4 x 10′ Black Marine Carpeted Bunk Board

This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

These are used as the standard option for JBT-1600 'River Hawk' Trailer models, as well as an upgradeable option for the JBT-1400 model.

'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-10FT

Used on

General

2 x 4 x 16′ Black Marine Carpeted Bunk Board

This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

These are used for PT-1618, and PT-1820 trailer models.

MODEL: CFBUNKBRDC-16FT

Used on

General

2 x 4 x 2′ Black Marine Carpeted Bow Support Bunk

This item is mounted with a Jon Boat Trailer Bow Support Bunk Mounting Kit to all Jon Boat Trailer models except the JBT-1600 'River Hawk'.

MODEL: CFBOWSPRTC-2FT

Used on

General

2  x 4 x 5′ Black Marine Carpeted Bunk Board

These are used for PWT-800, and PWT-2212 trailer models.

Single PWC Zinc Bunk Mounting Kit

Single PWC Galvanized Bunk Mounting Kit

2212B - Bunk Mounting Kit

2212G - Bunk Mounting Kit

MODEL: CFBUNKBRDC-5FT

Used on

General

2 x 4 x 6′ Carpeted Black Marine Bunk Board

These are used on PWT-1000, PWT-1100, PWT-2213, PWT-2214, and all Jon Boat Trailer models.

1000B - Bunk Mounting Kit

1000G - Bunk Mounting Kit

2213B - Bunk Mounting Kit

2213G - Bunk Mounting Kit

Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-6FT

Used on

General

2-Leaf Slipper Springs w/ Radius 550 lb Maximum Capacity (Qty 2)

This item is mounted to the 1000 lb Galvanized Trailer Axle, and the 1000 lb Black Powder Coated Trailer Axle using a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13070

MODEL: CFAXLE2-LSPRNG(SL)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

2000 lb Extended Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

This item is not shipped. Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340.

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 84.45" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-2212G trailer model with a Galvanized Axle Mounting Kit, and to the PWT-2212B trailer model with a Black Powder Coated Axle Mounting Kit

MODEL: CFAXLE2000G-EXTENDED

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 2000 lb

Hub Face: 91.5"

Spring Center: 81.5"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

 General

20′ Winch Strap w/ Hook (4000 lb Max Capacity)

• Dutton-Lainson black heavy duty winch strap and hook
• For winches up to 2,600 lb. capacity
• 2" wide x 20' long
• 4,000 lb. breaking strength
• Snap Hook has a tensile strength of 7,500 lbs.
• Includes a 3/8" x 3" bolt, a 3/8" x 3-1/4" bolt, and a 3/8" locknut to install strap onto winch drum

MODEL: CFWNCHSTRAP-20FT(4K-DL)

General

21' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH21

Used on

JBT-1600 ‘RIVER HAWK’

General

2212B - Bunk Mounting Kit

These are all of the requisite materials needed to mount a 2″ x 4″ x 5′ Black Marine Carpeted Bunk Board onto a 2212B trailer model.

Materials Include:

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-2212B

Used on

PWT-2212B

General

2212B - Fender Mounting Kit

These are all of the requisite materials to mount a Black Powder Coated Fender 4.80 x 12" Tire onto a 2212B trailer model.

Materials Include:

4 – 3/8″ Zinc Hex Flange Top Lock Nut

MODEL: CFFNDRKIT-2212B

Used on

PWT-2212B

General

2212G - Fender Mounting Kit

These are all of the requisite materials needed to mount a Galvanized Fender 4.80 x 12” Tire onto a 2212G trailer model.

Materials Include:

4 – 3/8" Galvanized Tri-Lock Nut

MODEL: CFFNDRKIT-2212G

Used on

PWT-2212G
