Hubs

General

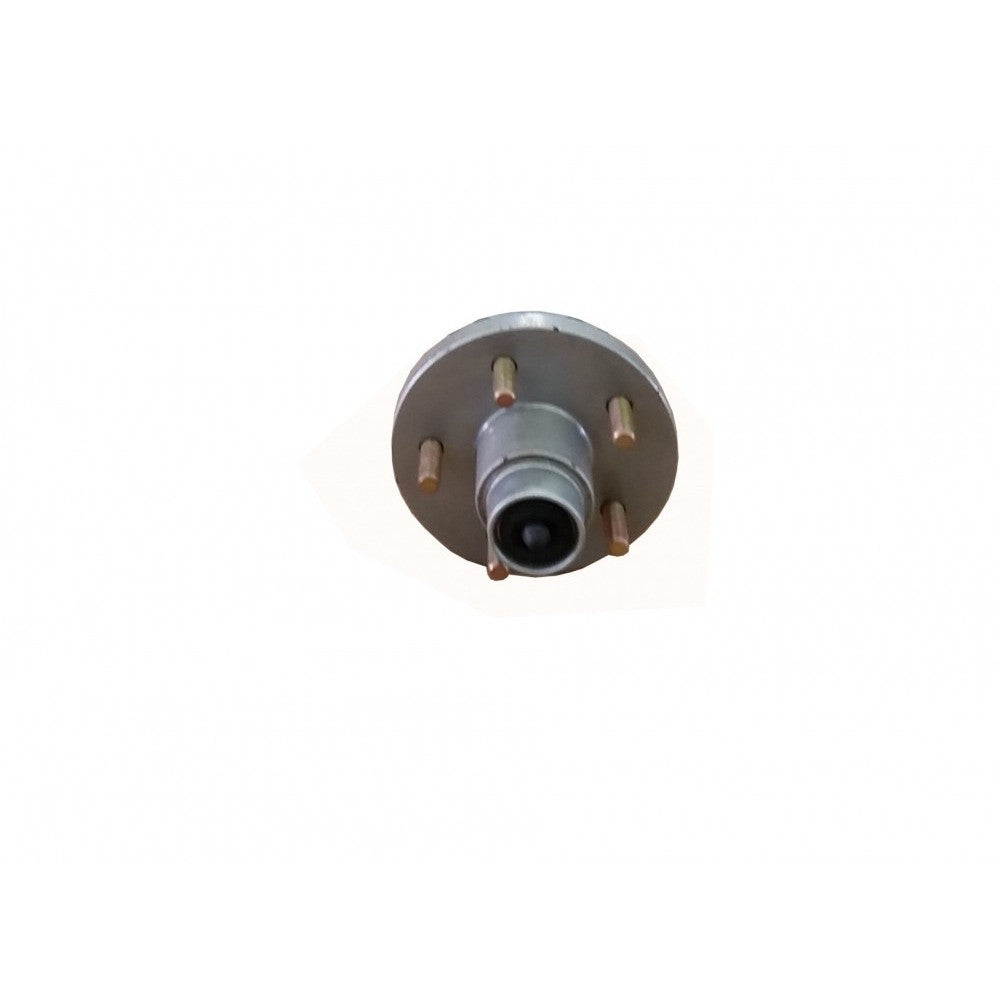

Complete 545 Bolt 1250/1350LB Hub Assembly w/Bearings, Seal, Amp and Dust Cap - Dexter

Hub Includes:

- Triple Lip Grease Seal - 1.25" I.D. - 1.98"

- 1-1/16" Bearing Cup

- 1-1/16" L44649 Bearings

- 1-1/2"-20 Lug Nut Studs

- 1/2″-20 Lug Nut (Set of 5)

- 1.98" Dust Cap

- Super Lube Rubber Grommet

- Cotter Pin

TIEDOWN MODEL: #46205X

MODEL: CFAXLE-HUB5BLT(1350-G)

Used on

General

Black Powder Coated 545 Bolt 1250/1350LB Hub Assembly w/ Bearings, Seal, Amp, and Dust Cap - Dexter

Hub Includes:

- Triple Lip Grease Seal - 1.25" I.D. - 1.98"

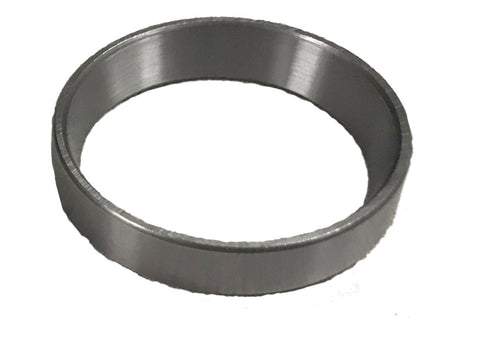

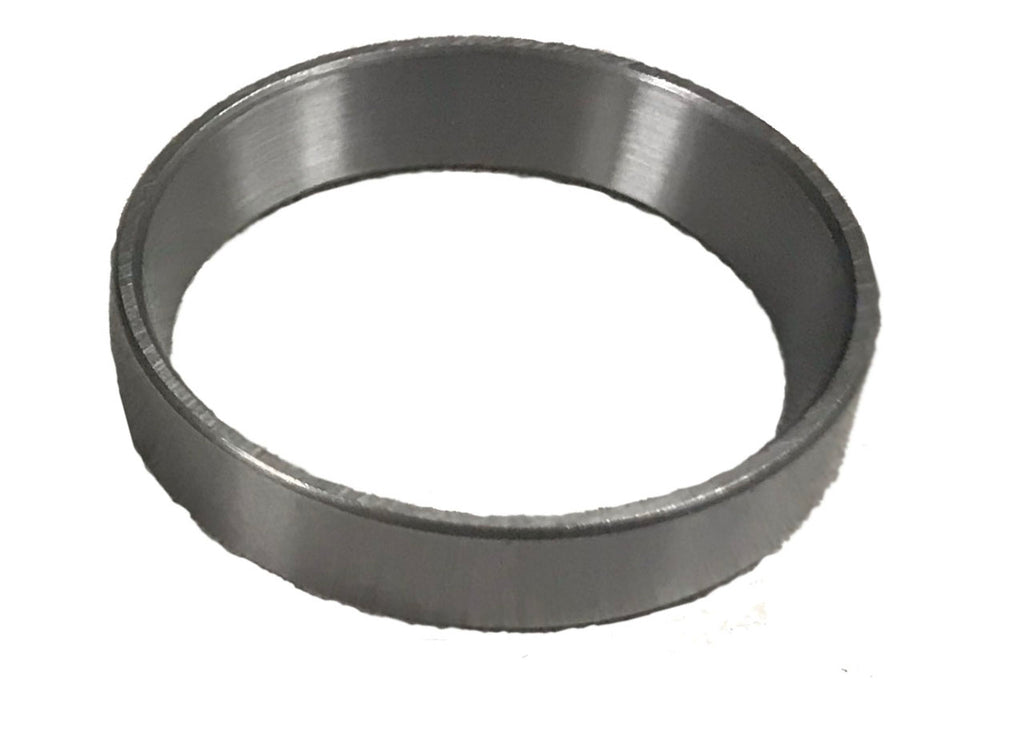

- 1-1/16" Bearing Cup

- 1-1/16" L44649 Bearings

- 1-1/2"-20 Lug Nut Studs

- 1/2″-20 Lug Nut (Set of 5)

- 1.98" Dust Cap

- Super Lube Rubber Grommet

- 12 Position Castle Nut

- Cotter Pin

MODEL: CFAXLE-HUB5BLT(1350-B)

Used on

General

2″ Steel Super Lube Grease Dust Cap & Plug for Axle Hub

This item is a part of all hub assemblies and comes as a pair.

Galvanized 5-Bolt Hub Assembly

Powder Coated Black 5-Bolt Hub Assembly

TIE DOWN MODEL: #17093

MODEL: CFAXLE-CAP&PLUG

Used on

ALL COM-FAB TRAILER MODELS

General

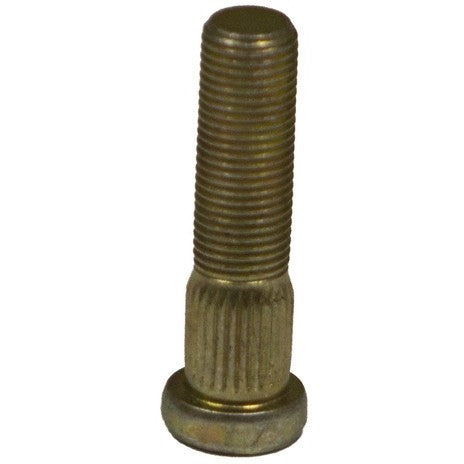

1-1/2"-20 Lug Nut Stud

The stud material is SAE grade 8, zinc dichromate plated, with a minimum 96 hour salt spray requirement.

1/2"-20 Lug Nut

MODEL: CFAXLE-BLT(STUD1-1/2)

Used For

ALL COM-FAB TRAILER MODELS

General

1-1/16" L44649 Bearings

These bearings fit a 1-1/16" diameter Spindle Shaft, and are used with L44610 Bearing Cups. These are used on Tie-Down #1350, and #1750 Hubs

UNIVERSAL MODEL: L44649

TIE DOWN MODEL: #11054

MODEL: CFAXLE-BRG(1-1/16")-INNER/OUTER

Used on

ALL COM-FAB PWC, JON BOAT, AND CANOE/KAYAK TRAILER MODELS

General

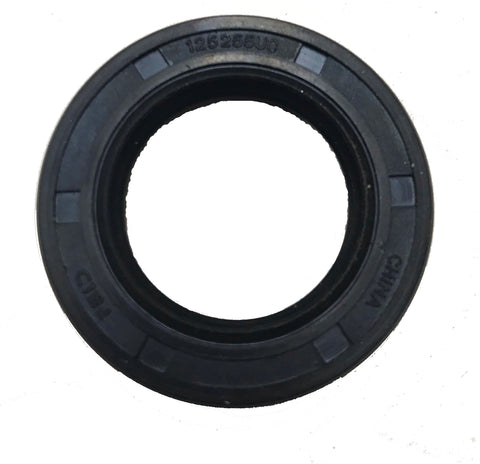

Triple Lip Grease Seal - 1.25" I.D. - 1.98"

This seal is part of our Galvanized 5-Bolt Hub Assembly, and our Black Powder Coated 5-Bolt Hub Assembly. This rubber coated seal fits Tiedown Bearings 44643, and 44649

TIEDOWN MODEL: 1252555UC

MODEL: CFAXLE-SEAL(TRIPLE-1.25)

Used on

General

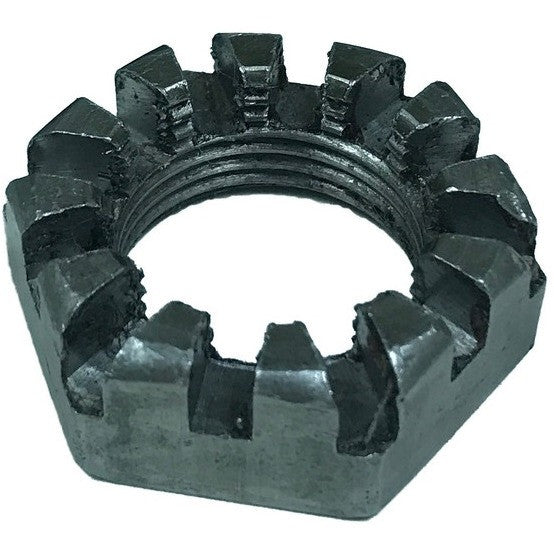

12 Position Castle Nut

This item is fastened to the end of an Axle Spindle with the use of a 5/32" x 2" Zinc Plated Cotter Pin. This combination secures Hubs to all PWC Trailer Models. It is rated for axles less than 3000 lbs. It is a 1"-14 Thread 12-Slot Castle Nut to fit standard 1" trailer spindles.

TIE DOWN MODEL: #10634

MODEL: CFAXLE-NUT(CASTLE-L)

Used on
