Brake Hardware

General

Model 66 6600 lb GVWR Capacity Hydraulic Disc Brake Actuator; 660 lb Tongue Load; 2″ Coupler (Includes Disc Brake Solenoid) - Dexter

This item is used with Hydraulic Disc Brake Setups on every Pontoon Boat Trailer model with Disc Brakes.This item is mounted to Pontoon Boat Trailer models with an Actuator Mounting Kit

MODEL: CFCPLR-BRAKE(DISC-660)

Used on

General

Model 66 Brake Hose Cover

This item attaches to Tie Down "Model 66" 6600 Lb Capacity Hydraulic Disc Brake Actuator w/ 2" Coupler to protect the Brake Hose. Comes with 2 Small Screws.

MODEL: CFBRKECOVER

Used on

General

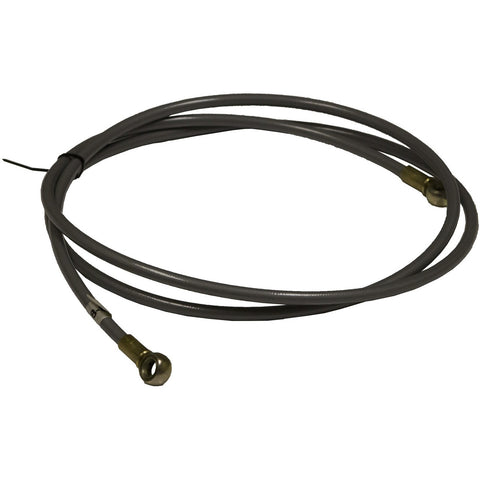

84″ Grey Flex Hose Banjo-Banjo Brake Line - Dexter

This item is used to connect two Aluminum E-Coat Caliper Assemblies on Tandem Axle Pontoon Boat Trailers.

MODEL: CFBRKELINE-84BB(GREY)

Used on

General

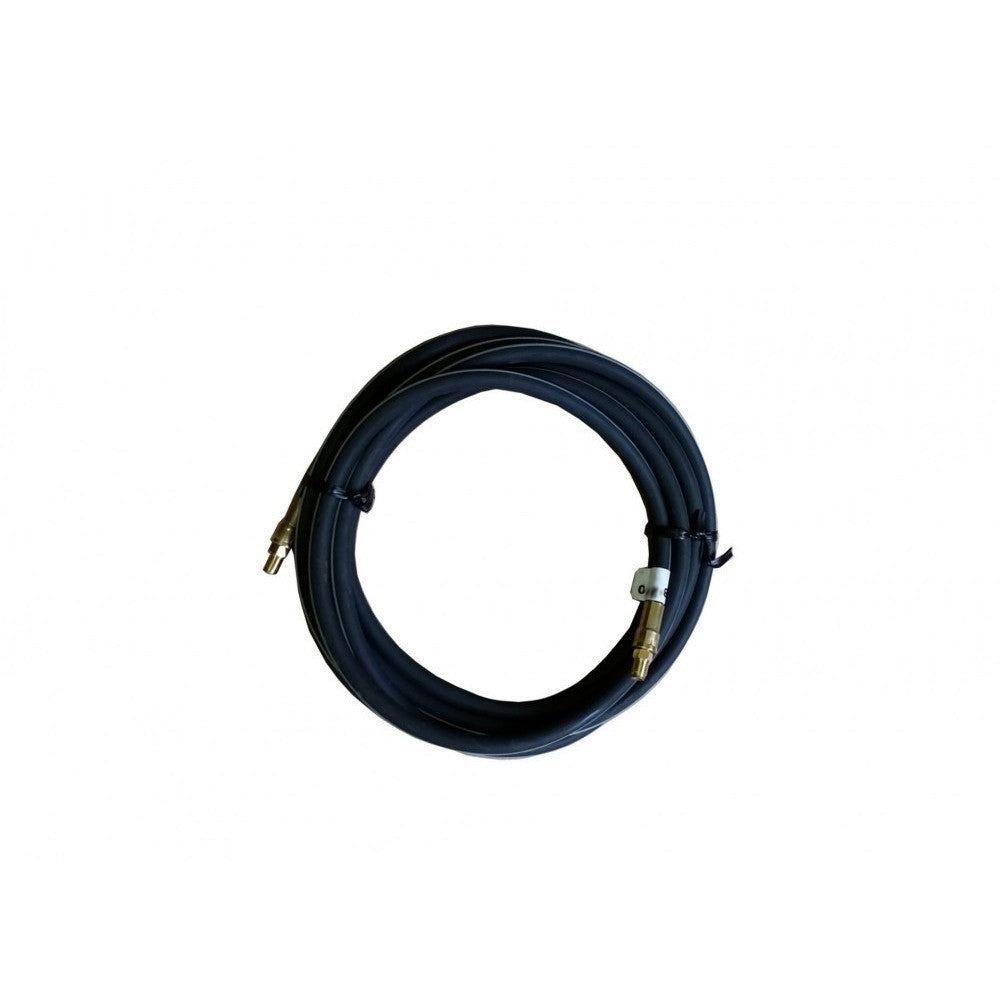

192″ Black Flex Hose Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46238-192

MODEL: CFBRKELINE-192(BLK)

Used on

General

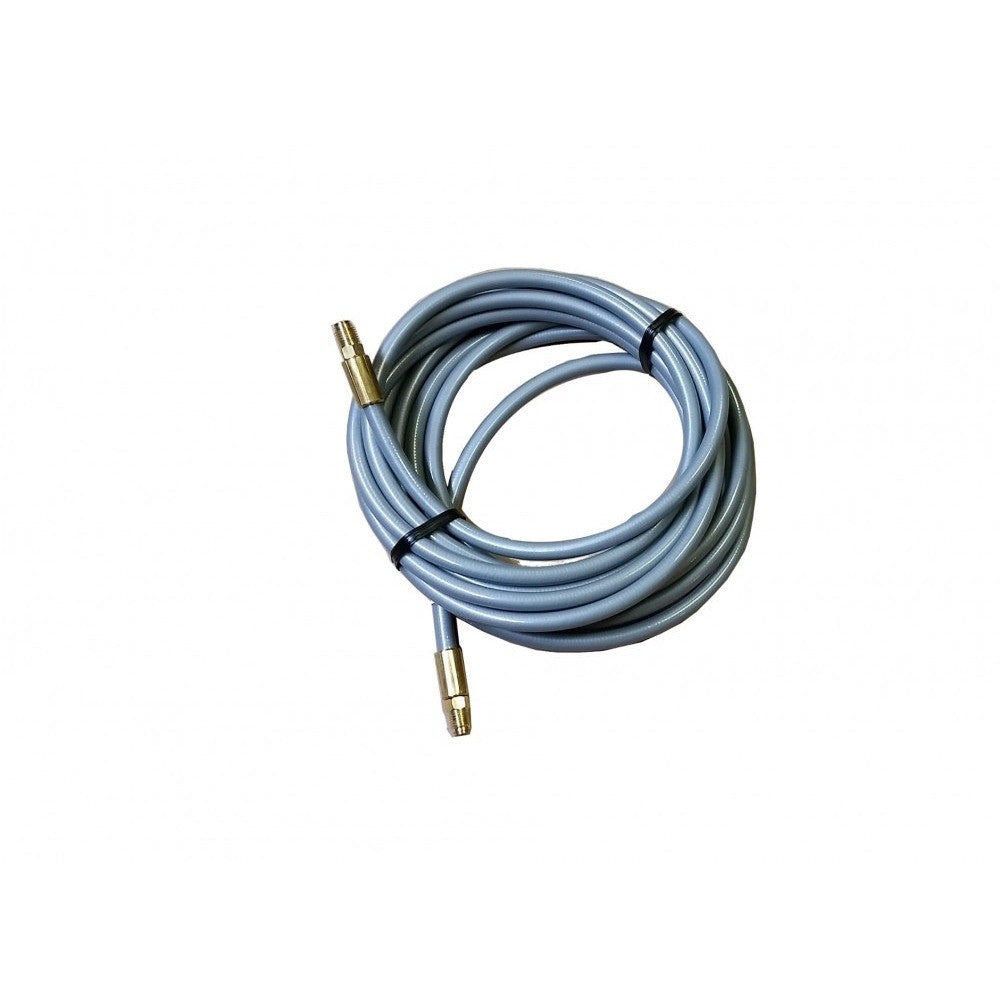

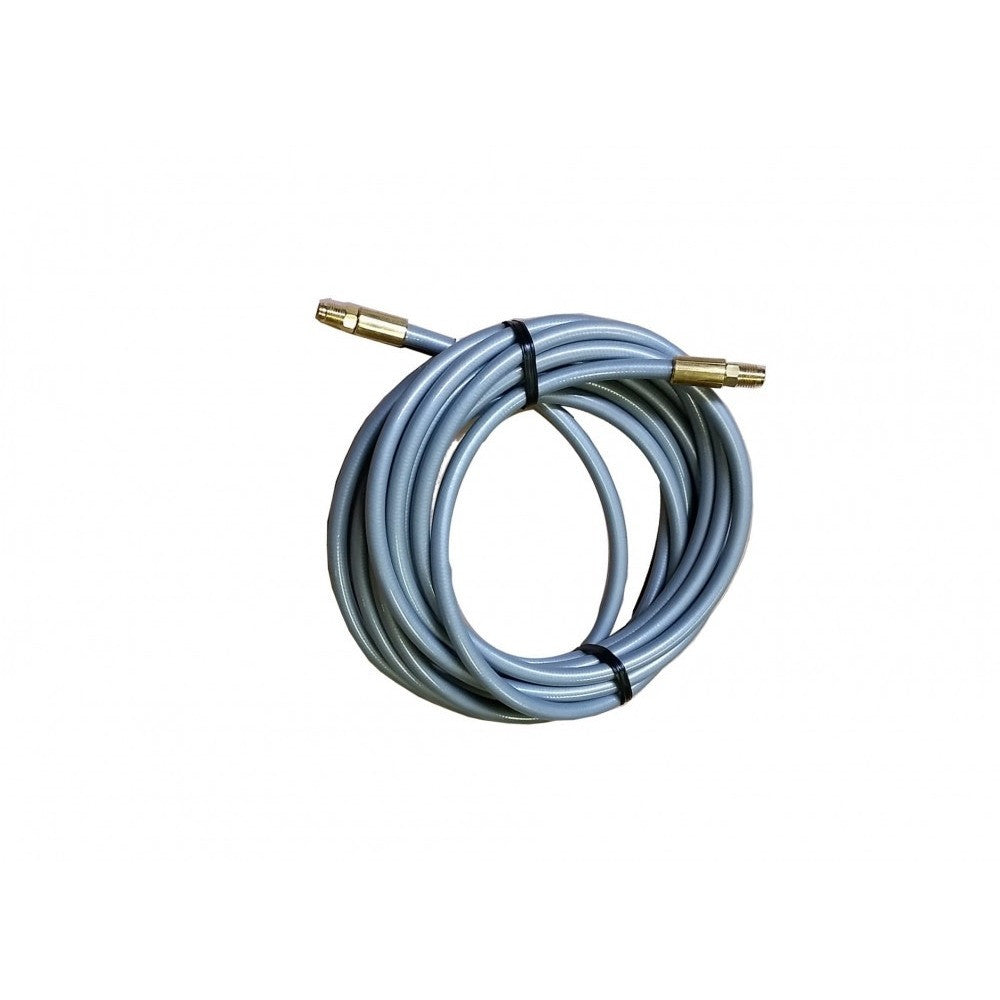

192″ Grey Poly Flex Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-192

MODEL: CFBRKELINE-192(GREY)

Used on

General

240″ Grey Poly Flex Male-Banjo Brake Line - Dexter

This item is used for brake lines on PT-2224 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-240

MODEL: CFBRKELINE- 240(GREY)

Used on

PT-2224

General

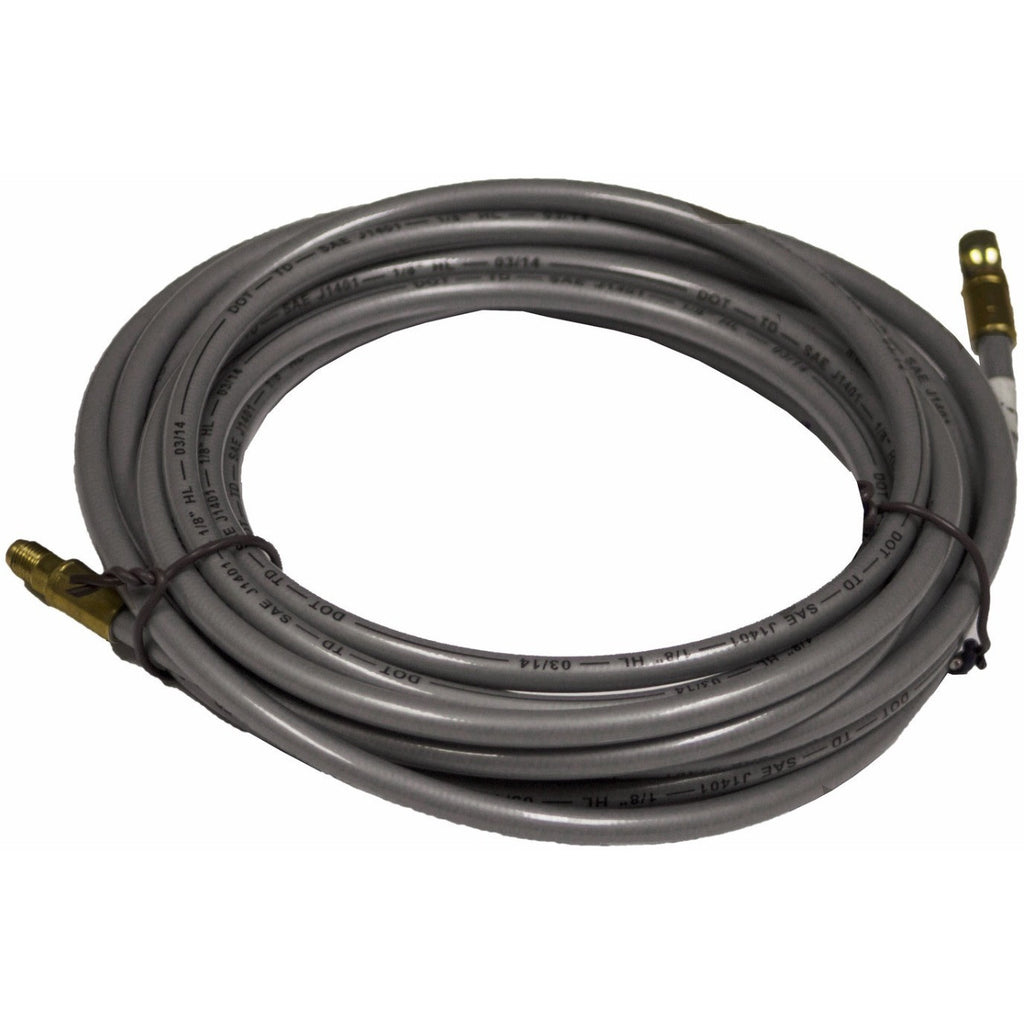

264″ Grey Poly Flex Hose Male-Male Brake Line - Dexter

This item is used as a brake line on PT-2426 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-264

MODEL: CFBRKELINE- 264(GREY)

Used on

PT-2426

 General

264″ Grey Poly Flex Hose Male-Banjo Brake Line - Dexter

This item is used as a brake line on PT-2426 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46223-264

MODEL: CFBRKELINE-264B(GREY)

Used on

PT-2426

General

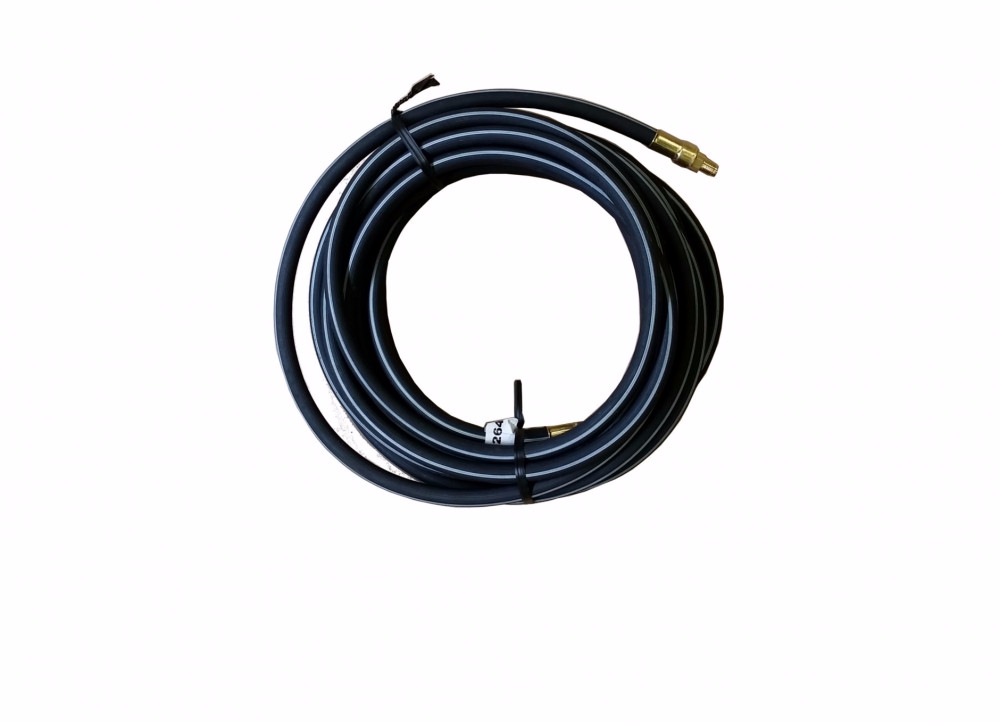

288″ Black Flex Hose Male-Banjo Brake Line - Dexter

This item is used for brake lines on select PT-2426 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46238-288

MODEL: CFBRKELINE-288(BLK)

Used on

PT-2426

General

Tie Down Stainless Steel Caliper Bleeder Valve

This item is used on all TIE DOWN Aluminum E-Coat Caliper Assemblies. This item has a 1/8"-27 Stainless Steel Bleed Port.

TIE DOWN MODEL: #12114

MODEL: CFBRKE-BLEEDER

Used on

General

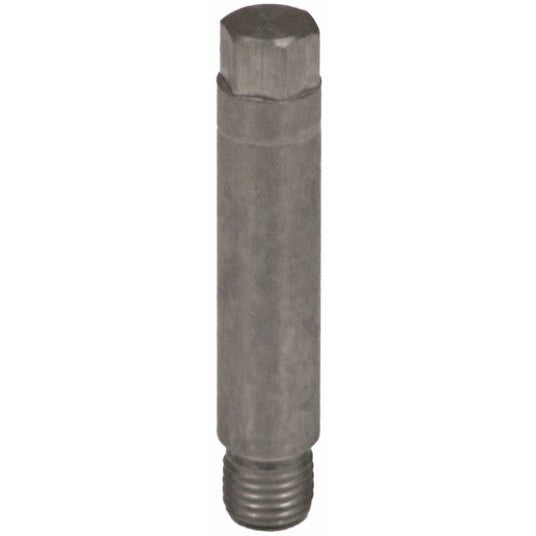

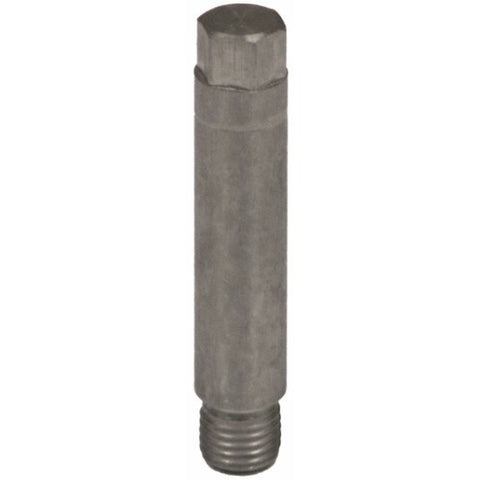

Tie Down 7/16" Diameter x 2.593 Stainless Steel Slider Pin

This item is used for mounting a Tie Down caliper to a 9.6" vented rotor. Stainless steel caliper slide pins are easily accessible with hex heads for quick removal. It allows the caliper to float freely and insures proper alignment during installation. It fits all vented rotor calipers.

TIEDOWN MODEL #007-692-00 or 12114

MODEL: CFAXLE-PIN(CALIPER-SS)

Used on

General

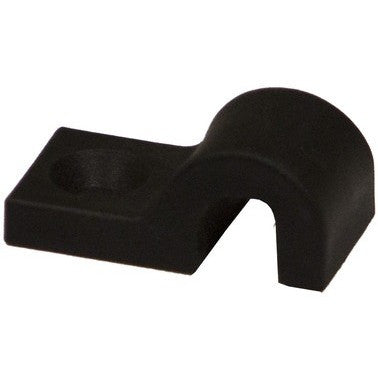

3/8" Black Cable Clamp for Brake Lines

This item is secured onto the axle w/ use of a 12 x 3/4″ Zinc Hex Washer Head Tek#3 Screw. The item is used for securing all brake lines to axles on Pontoon Boat Trailer models w/ Brakes.

MODEL: CFBRKECBLCLAMP

Used on

General

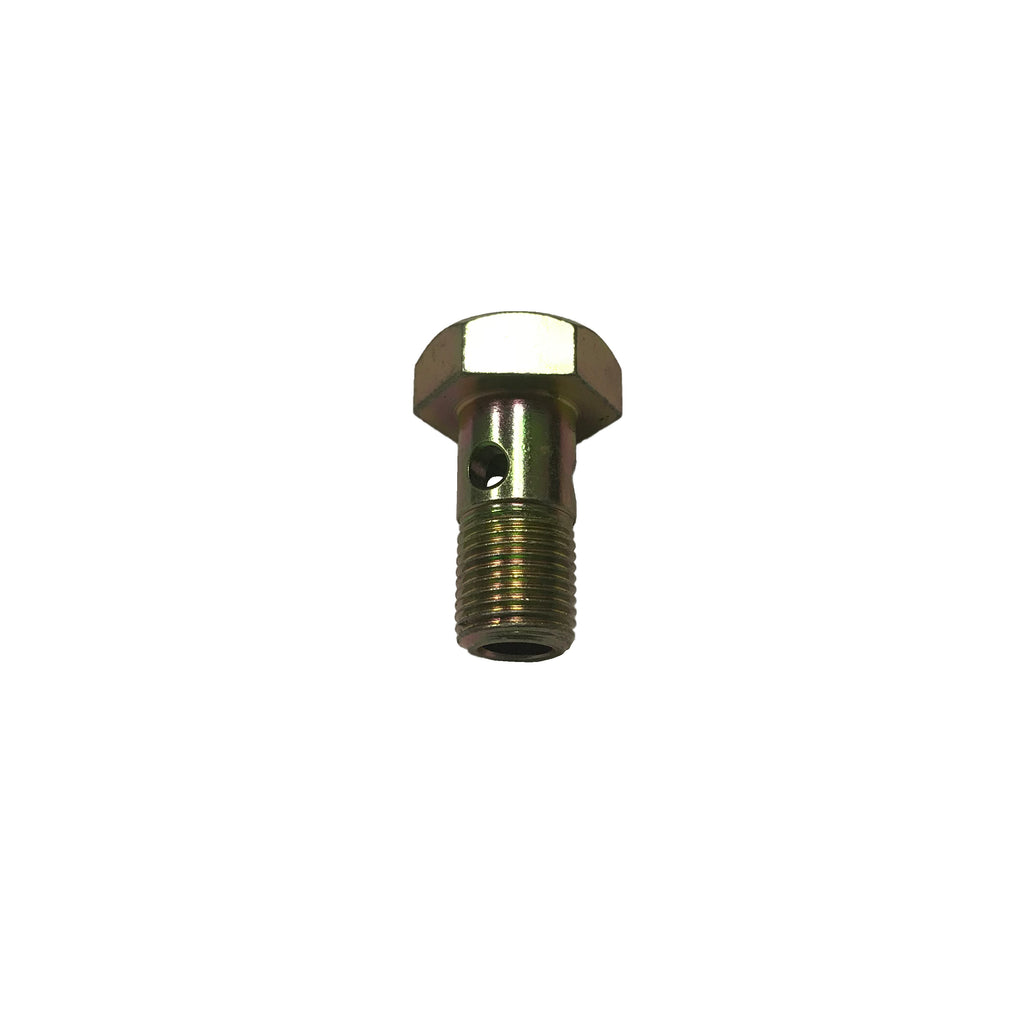

Brass Banjo Fitting Bolt for (Round) Banjo-fitted Brake Lines

This item is used in conjunction with 64" Grey Flex Banjo-Banjo Brake Lines, O-Rings and Copper Banjo Fitting Washers to connect Aluminum E-Coat Caliber Assemblies on all tandem axle pontoon trailer models.

For use with:

– Copper Banjo Fitting Washer

MODEL: CFBRKE-BLTBANJO(RD)

Used on

General

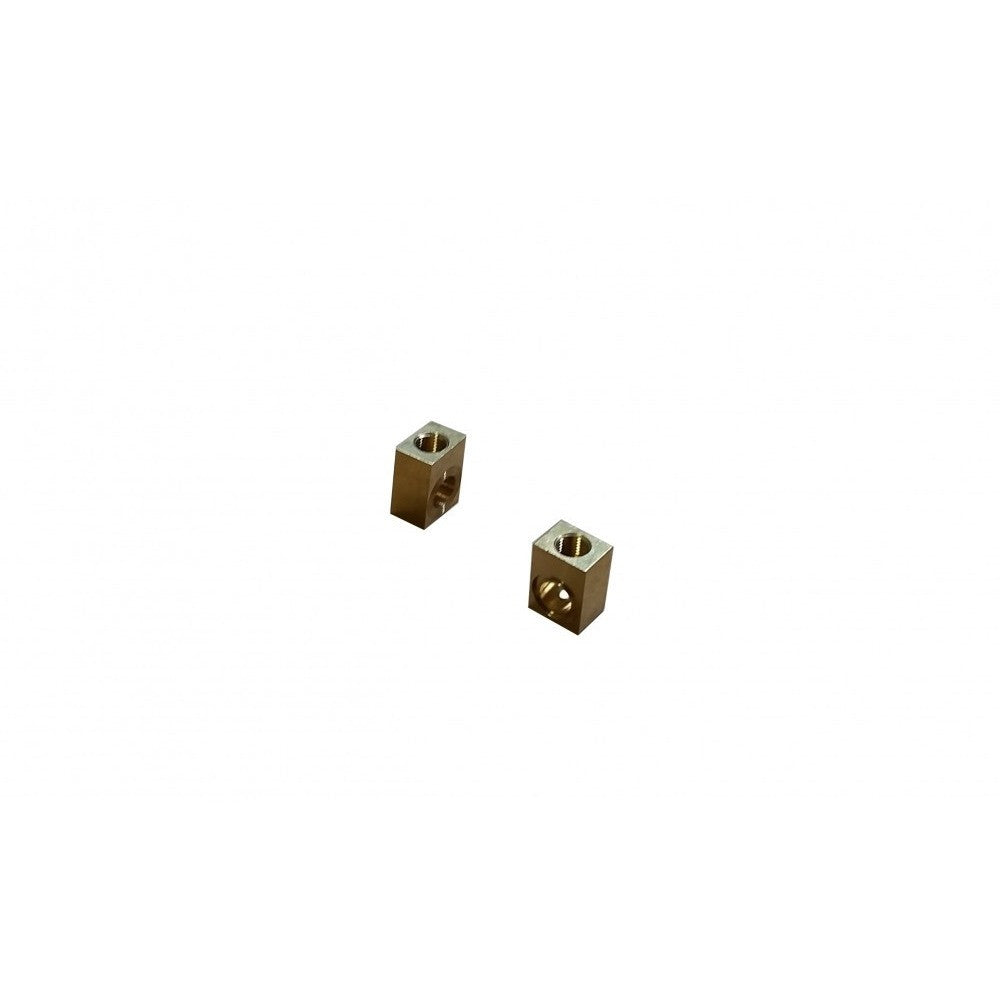

Brass Banjo Brake Fitting Base

This item is used in conjunction with a banjo fitting bolt, a Black O-Ring and a Copper Washer for brake line quick connect.

For use with:

– Copper Banjo Fitting Washer

TIE DOWN MODEL: #11348

MODEL: CFBRKE-BASEBANJO

General

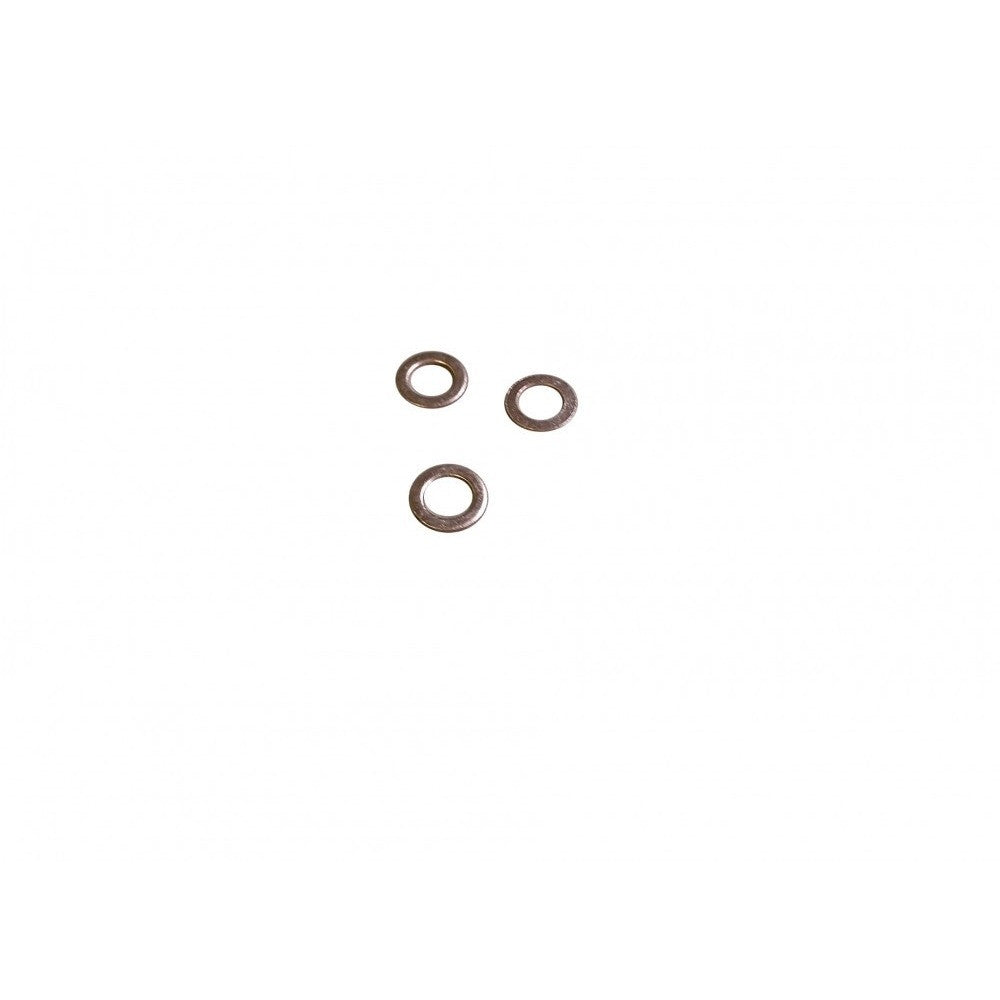

Copper Banjo Brake Fitting Washer

This item is used in conjunction with 64" Grey Flex Hose Banjo-Banjo Brake Lines, Brass Banjo Fitting Bolts, and Black O-Rings to connect Aluminum E-Coat Caliber Assemblies on all tandem axle pontoon trailer models.

For use with:

– 64″ Grey Flex Hose Banjo-Banjo Brake Lines
– Brass Banjo Fitting Bolts
– Black O-Rings

MODEL: CFBRKE-WSHRBANJO

Used on

General

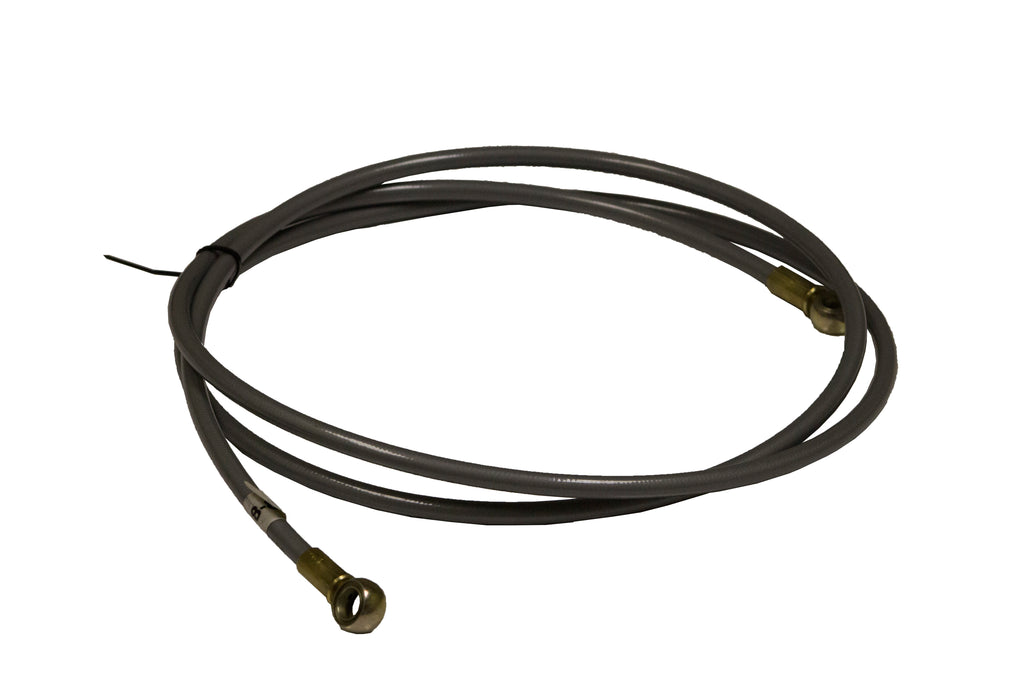

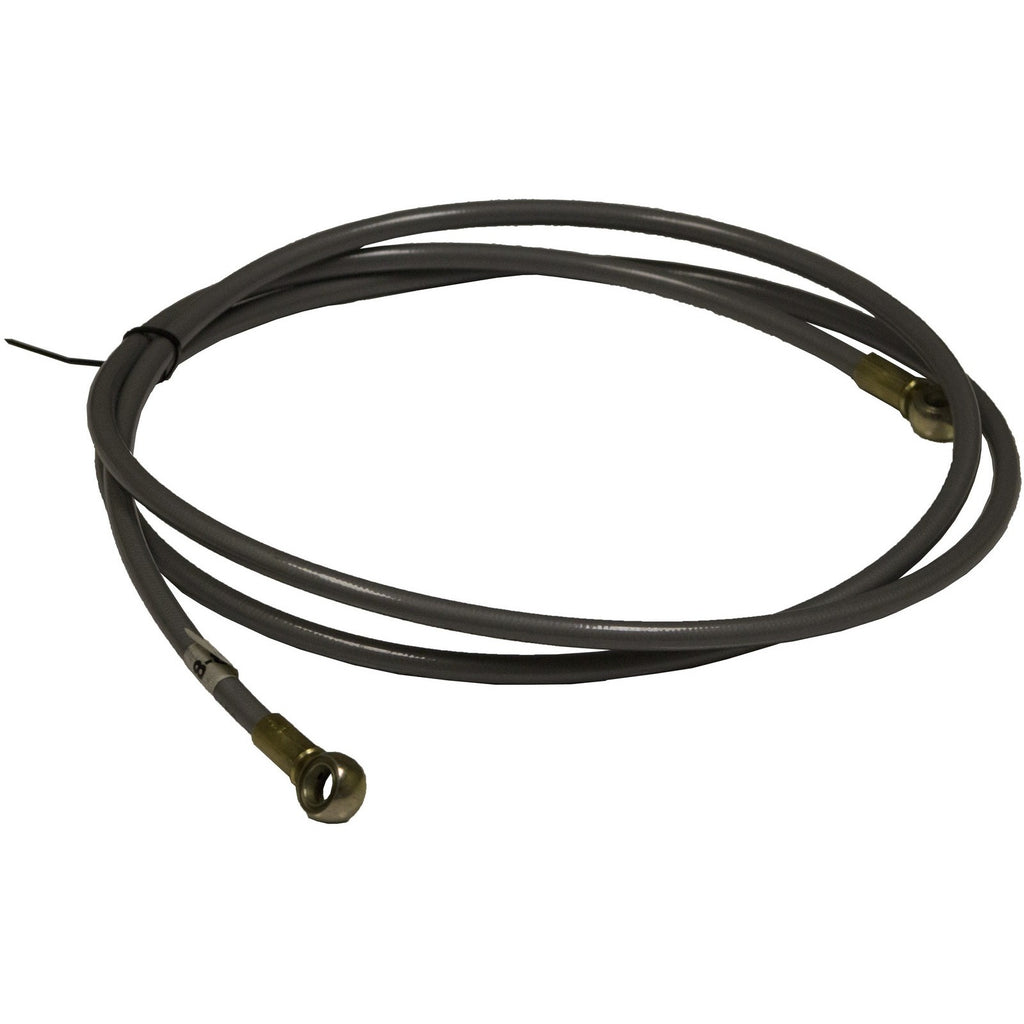

64″ Grey Flex Hose Banjo-Banjo Brake Line - Dexter

This item is used to connect two Aluminum E-Coat Caliper Assemblies on Tandem Axle Pontoon Boat Trailer models.

For use with:

Used on

General

Coupler Safety Pin

1/16-1/8IN 7x7x12.5 w/ 5/16 Safety Cable Pin. Used for Model TDE 660E and TDE 850E Actuators to Prevent Latch from Coming Undone

MODEL: CFCPLR-PIN
