Canoe and Kayak Trailers

General

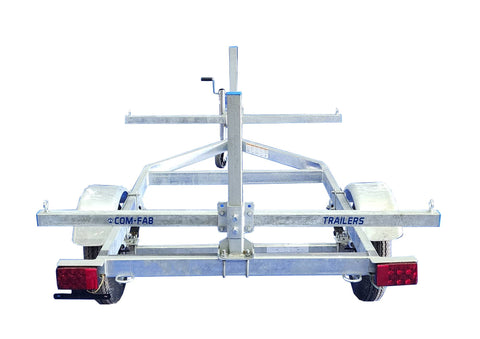

2 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayak/canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable

- 2x2x11 gauge upright bracing for universal fit

- 2x2x14 gauge cross braces

This is a conversion kit only and requires a trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

Kayak Setup - CFKIT-KAY(2)

• 2x 24" Uprights
• 2x 60" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for use with Tie Downs
• 8x Galvanized Lock Nuts for locking in Eye Bolts

Canoe Setup - CFKIT-CAN(2)

• 2x 24" Uprights
• 2x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for Securing Tie Downs
• 8x Galvanized Lock Nuts for Securing Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

3 Capacity Canoe/Kayak Conversion Kit

Canoe/kayak trailer conversion kit for up to 3 kayaks or 3 canoes without plastic protective covering.

- Designed to hold 3 kayaks/canoes

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2x2x11 gauge upright bracing for universal fit.

- 2x2x14 gauge cross braces

This is a conversion kit only and requires a separate trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

Kayak Setup - CFKIT-KAY(3)

• 2x 30" Uprights
• 2x 48" Crossbeams with Strap Assist and End Caps
• 2x 60" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

Canoe Setup - CFKIT-CAN(3)

• 2x 30" Uprights
• 2x 48" Crossbeams with Strap Assist and End Caps
• 2x 80" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

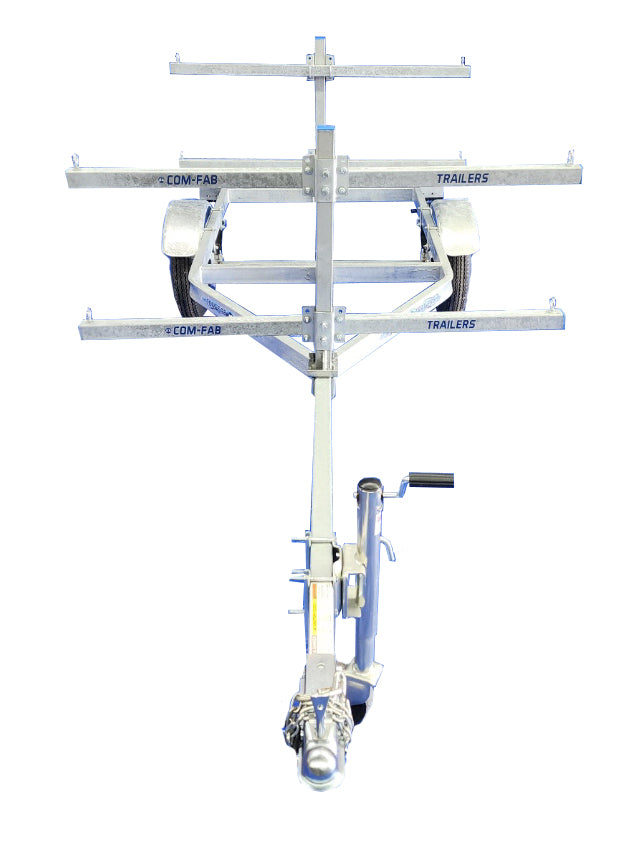

4 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 4 kayaks or 4 canoes without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 4 regular sized kayaks or canoes

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2x2x11 gauge upright bracing for universal fit.

- 2x2x14 gauge cross braces with stability slides, preventing side-to-side movement. (Optional)

This is a conversion kit only and requires a separate trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

4 Capacity Normal Kayak Kit - CFKIT-KAY(4S)

• 2x 30" Uprights
• 4x 60" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Tall Kayak Kit - CFKIT-KAY(4T)

• 2x 40" Uprights
• 4x 60" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Normal Canoe Kit - CFKIT-CAN(4S)

• 2x 40" Uprights
• 4x 80" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Tall Canoe Kit - CFKIT-CAN(4T)

• 2x 48" Uprights
• 4x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

* The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

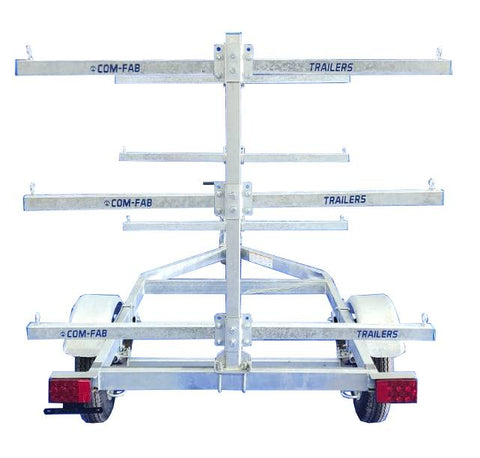

6 Capacity Canoe/Kayak Conversion Kit

Canoe/kayak trailer conversion kit for up to 6 canoes or 6 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 6 regular sized canoes/kayaks

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2 x 2 x 11 gauge upright bracing for universal fit.

- 2 x 2 x 14 gauge cross braces

This is a conversion kit only and requires a separate trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

6 Capacity Normal Kayak Kit - CFKIT-KAY(6S)

• 2x 48" Uprights
• 6x 60" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts

6 Capacity Tall Kayak Kit - CFKIT-KAY(6T)

• 2x 60" Uprights
• 6x 60" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts

6 Capacity Normal Canoe Kit - CFKIT-CAN(6S)

• 2x 60" Uprights
• 6x 80" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts


6 Capacity Tall Canoe Kit - CFKIT-CAN(6T)

• 2x 72" Uprights
• 6x 80" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

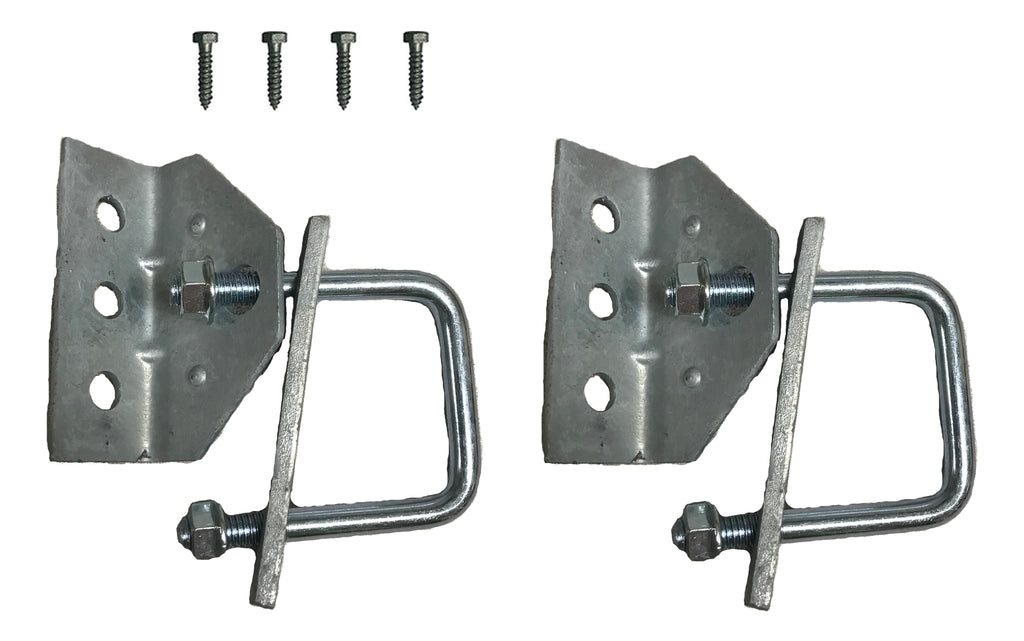

This kit contains all of the materials necessary to mount a bunk on one of our canoe or kayak trailers. The kit contains:

2 – 3/8”-16 x 2.06” x 2.88” Zinc U-Bolt
2 – 4" x 1" x .25" Zinc Flat Plate
2 – Galvanized Angular Swivel Bracket
4 – 3/8"-16 Serrated Zinc Flange Nut

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

General

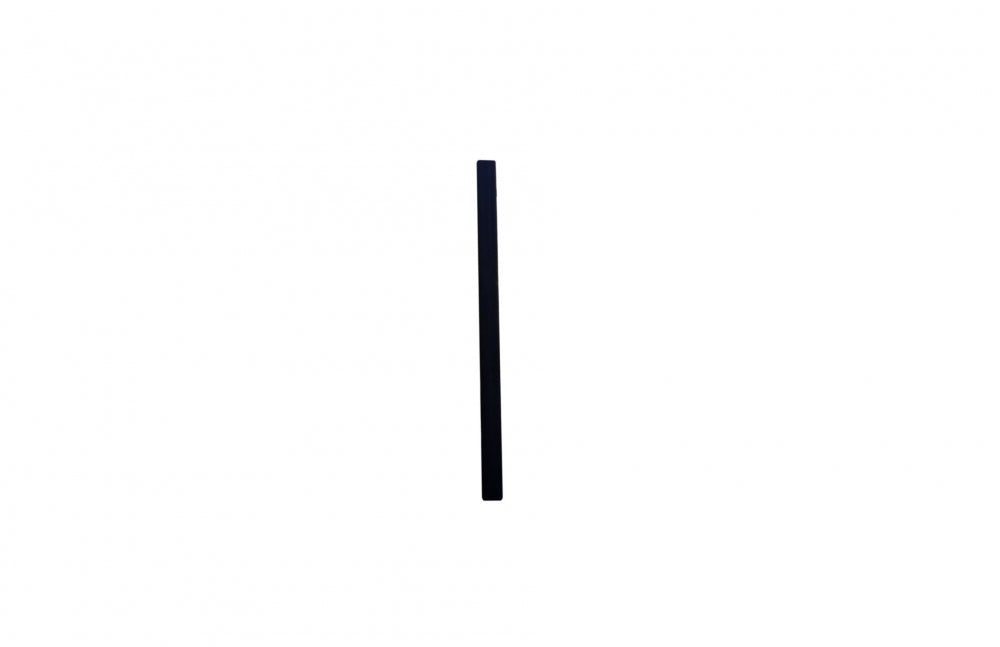

2 x 4 x 10′ Black Marine Carpeted Bunk Board

This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

These are used as the standard option for JBT-1600 'River Hawk' Trailer models, as well as an upgradeable option for the JBT-1400 model.

'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-10FT

Used on

General

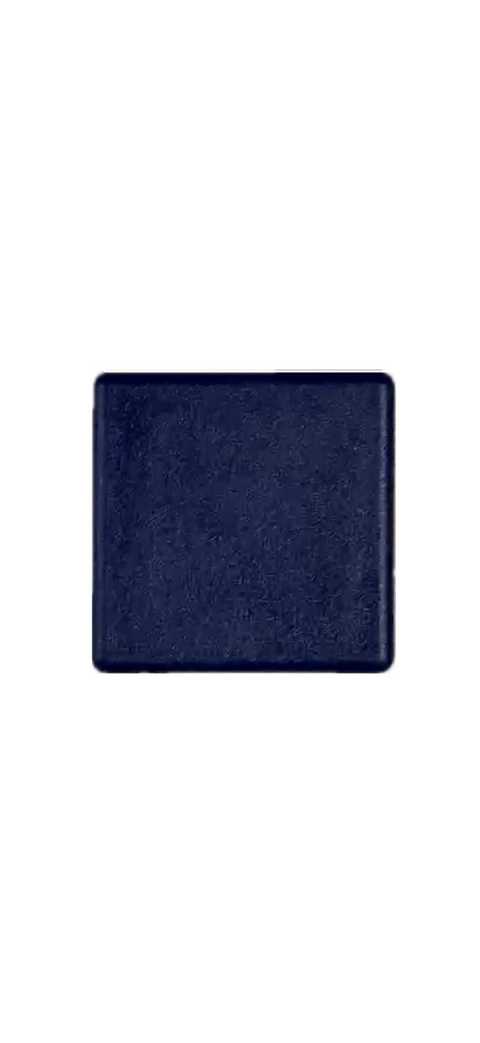

2x2 Square Tubing Plug for 10-14 GA

This item is used on Pontoon Winch Stands & Canoe/Kayak Crossbars and Uprights. It may also be used in other applications utilizing 2" square tubing.

This item is part of these kits:

- 2 Capacity Canoe/Kayak Kit

- 3 Capacity Canoe/Kayak Kit

- 4 Capacity Canoe/Kayak Kit

- 2 Canoe + 2 Kayak Kit

- 6 Capacity Canoe/Kayak Kit

MODEL: CFCAP-2X2(10-14GA)

Used On

4.80x12 Gun Metal V-Spoke 545 Hole Pattern Aluminum Tire & Wheel Load Range C; Bias

This is the tire and wheel used on the PWT1100AL model and optional for PWT-800, PWT-1000, PWT-1100, and PWT-2212 black powder coated and galvanized trailer models. Speed rating 81 mph.

General

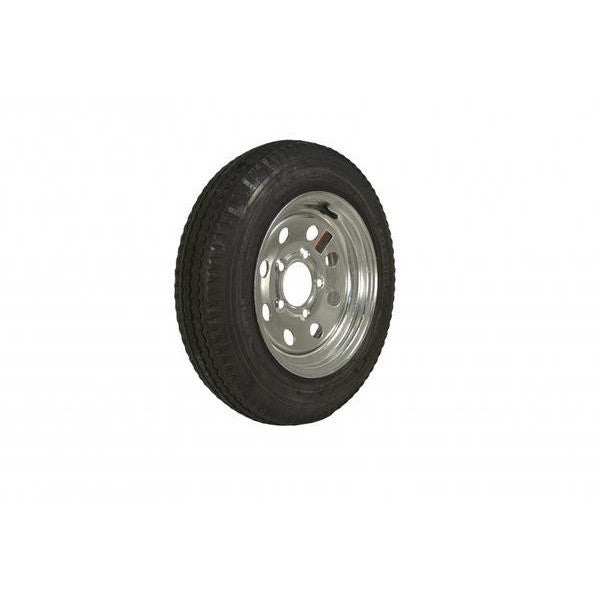

4.80 x 12″ C Load Range Galvanized Finish Tire & Wheel, Bias - Kenda/Loadstar

This is the tire and wheel used on PWT-800G, PWT-1000G, PWT-1100G, PWT-2212G, and all Jon Boat Trailer models. Tire Capacity is 990lbs (450kg). Speed rating 81 mph.

MODEL: CFT48012G

Used on

General

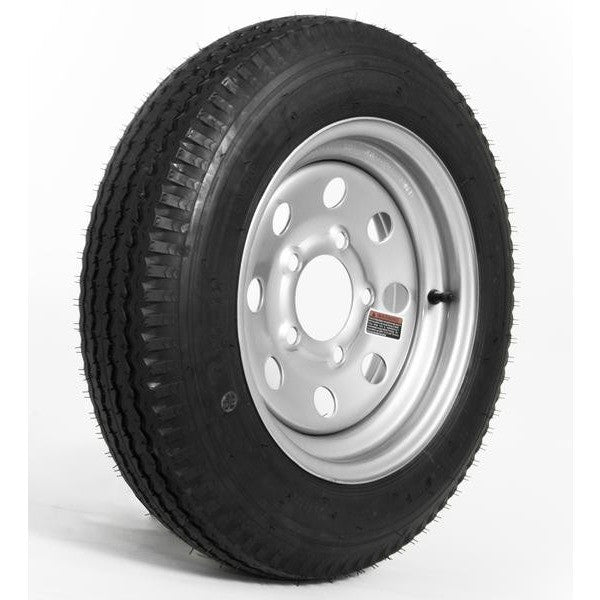

4.80 x 12″ C Load Range Silver E-Coat Finish Tire & Wheel, Bias - Kenda/Loadstar

This is the tire and wheel used on PWT-800B, PWT-1000B, PWT-1100B, and PWT-2212B black powder coated trailer models. Tire capacity is 990lbs (450kg). Speed rating 65 mph.

MODEL: CFT48012S-LRC

Used on

General

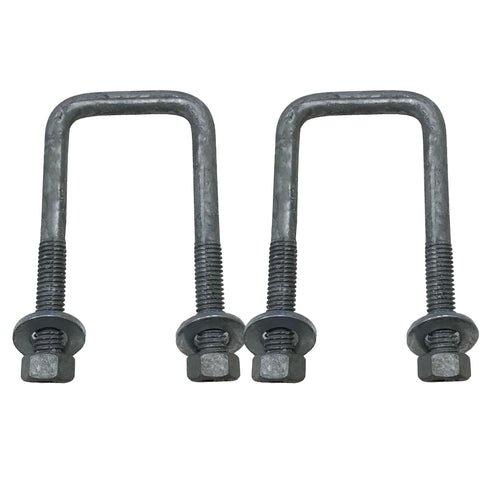

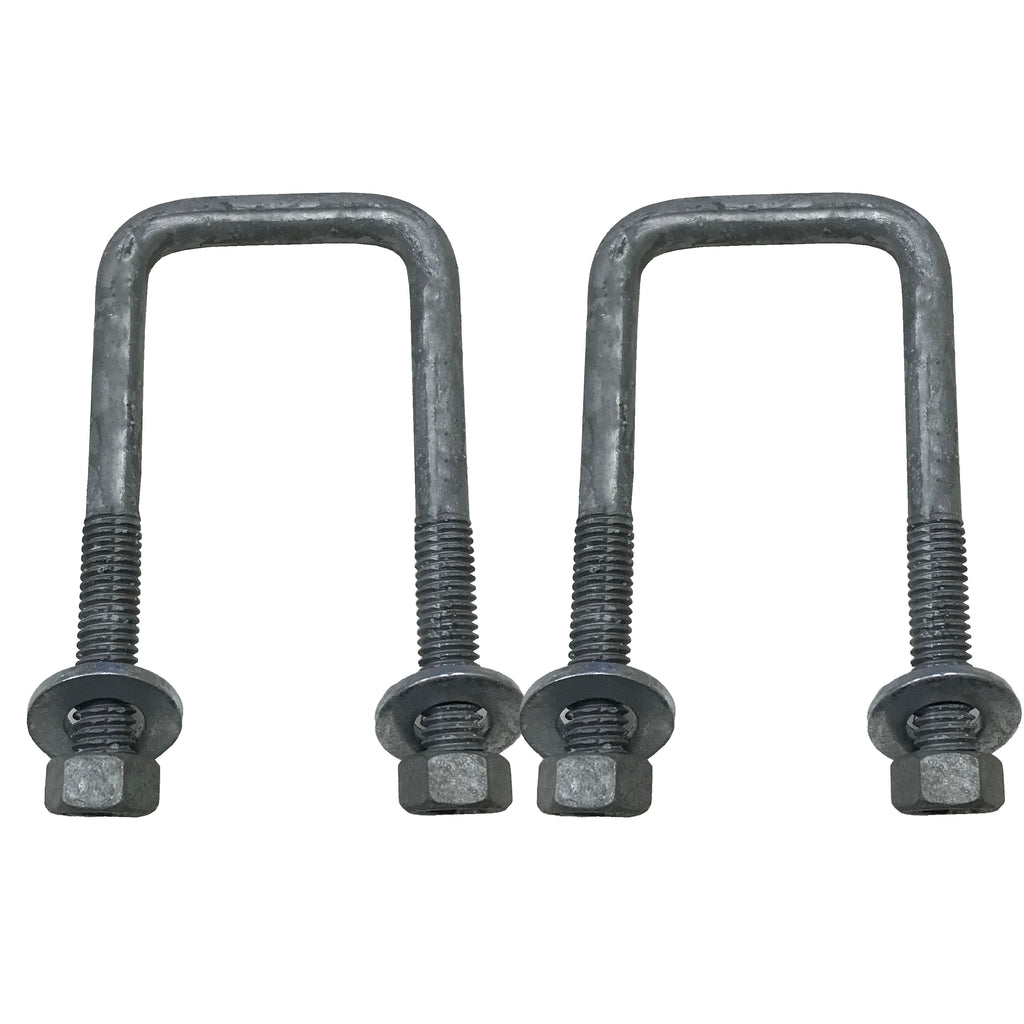

Kayak/Canoe Trailer Upright Mounting Kit

This kit is used to mount uprights on all Kayak/Canoe Trailer Models.

This kit includes:

2 – 7/16" x 2.06" x 4.31" Galvanized U-Bolt

4 – 1/2" SAE Galvanized Flat Washer

4 – 7/16" Galvanized Tri-Lock Nut

 MODEL: CFRACKUPRIGHT-MNTKIT

Used on

General

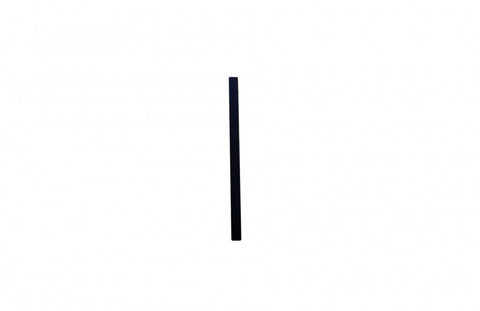

2″ x 4″ x 8′ Black Marine Carpeted Bunk Board

These are used for our KCT angler kits

Used along with our Angler Kayak Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-8FT

General

Kayak/Canoe Trailer Upright Mounting Kit

This kit is used to mount uprights on all 3IN tubing Trailer Models.

This kit includes:

2 – 3/8″ x 3.06" x 4.5″ Galvanized U-Bolt

4 – 3/8″ Galvanized USS Flat Washer

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

General

Kayak/Canoe Trailer Crossbar Mounting Kit

This kit is used to mount crossbars on all Kayak/Canoe Trailer Models.

This kit includes:

2 – 3/8”-16 x 2.06” x 2.88” Zinc U-Bolt

4 – 3/8″ Zinc Hex Flange Top Lock Nut

4 – 3/8″ Galvanized Flat Washer

1 – Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes

2 – Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
