Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS

General

TecNiq-T86 7 Function 6" Box LED Passenger Side Tail Light w/ Pigtail

• These are optional for all Trailer Models.
• Multi-Function 6" Box Tail Light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(R)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

TecNiq-T86 8 Function 8" Box Driver Side Tail Light w/ Pig Tail.

• Multi-Function 6" box tail light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(L)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

1200 lb Side Crank Swivel Jack

This item fits 3″ x 5“ tongues. It comes with a 1200 lb Side Crank Swivel Jack Mounting Kit.

MAXIMUM CAPACITY: 1200LB

PACIDIC RIM MODEL: MJ-1200B

MODEL: CFJACKSIDE

Used on

General

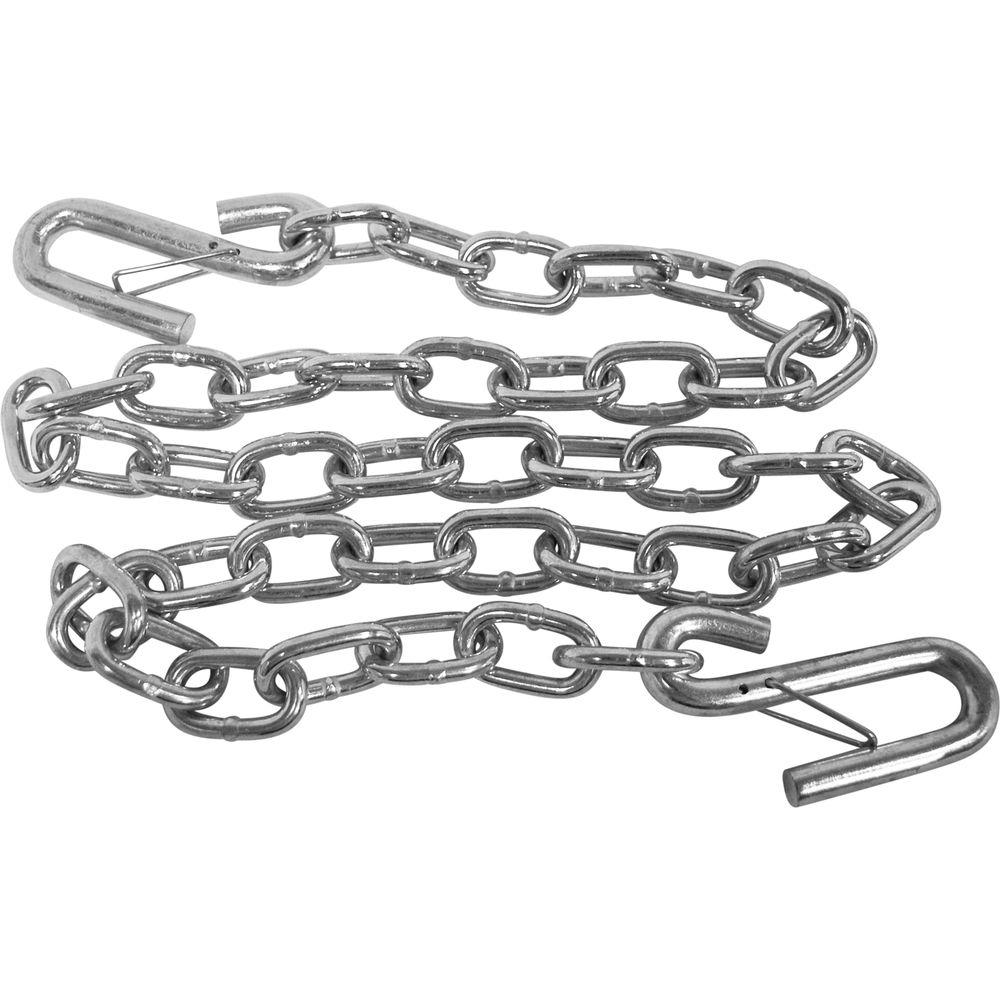

3/16" S-Hook with Latch Trailer Safety Chain - 48"

48" 2000 LB safety chain with 3/16 in S-Hooks and latch

MODEL: CFSFTYCHN

Used On

General

2″ Steel Super Lube Grease Dust Cap & Plug for Axle Hub

This item is a part of all hub assemblies and comes as a pair.

Galvanized 5-Bolt Hub Assembly

Powder Coated Black 5-Bolt Hub Assembly

TIE DOWN MODEL: #17093

MODEL: CFAXLE-CAP&PLUG

Used on

ALL COM-FAB TRAILER MODELS

General

4.80 x 12″ C Load Range Galvanized Finish Tire & Wheel, Bias - Kenda/Loadstar

This is the tire and wheel used on PWT-800G, PWT-1000G, PWT-1100G, PWT-2212G, and all Jon Boat Trailer models. Tire Capacity is 990lbs (450kg). Speed rating 81 mph.

MODEL: CFT48012G

Used on

General

Dry Launch SP7 Red Tail Light (Driver Side) - Incandescent

The Dry Launch submersible 8-function driver side tail light is waterproof with a bulb slide that has a built-in dust and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″ - 18 Tail Light Bolt

2 - 1/4" -18 Zinc Nut

MODEL: CFLIGHTREAR(L)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

Dry Launch SP7 Red Tail Light (Passenger Side) - Incandescent

The Dry Launch submersible 7-function passenger side tail light is waterproof with a bulb slide that has built-in dust, and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″-18 Tail Light Bolt

2 - 1/4"-18 Zinc Nut

MODEL: CFLIGHTREAR(R)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

Dutton-Lainson 900 lb Capacity Crank Winch

This item is a heavy duty winch used for horizontal pulling applications. It contains high carbon steel gears, permanently lubricated bearings, and a zinc tuffplate finish. A 12′ Winch Strap w/ Spring Loaded Hook and Loop End, and a Dutton-Lainson 900 lb Winch Handle. The mounting materials are sold separately.

Mounting Kit Includes:

2 - 3/8"-16 x 1" Zinc Hex Head Cap Bolt

2 - 3/8"-16 Serrated Zinc Flange Nuts

MODEL: CFWNCH900DL

Used on

General

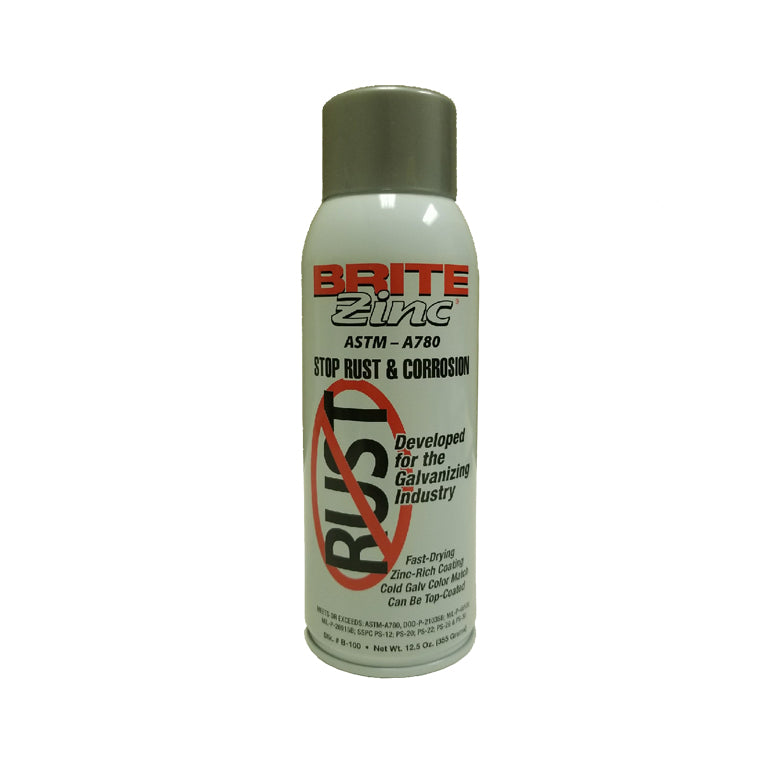

Weld Aid B-100 Brite Zinc Aerosol Spray Can

This product is used to touch up, and prevent rust and corrosion on all of our galvanized items for sale. The spray is 69% Zinc Metal ensuring that it matches the shine of any and all Hot-Dipped Galvanized Steel. It has a special no clog nozzle, and can cover up to 40 sq feet of steel. This item meets ASTM-A780 requirements for corrosion protection.

Read the Safety Instructions carefully before use of this item.

https://weldaid.com/wp-content/uploads/2018/11/1008302E.pdf

Specifications

Part No: B-100

UPC: 731592100013

Volume: 12.5 oz Primer

Model: CFGALVSPRAY

Used On

General

1500 lb Black Powder Coated PWC Trailer 545 Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-1000B, and the PWT-1100B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1500B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.19"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

TIE DOWN MODEL: #13086

MODEL: CFAXLE5-LSPRNG(SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

ST175/80D13 C Load Range, 13″ Silver E-Coat Finish Tire & Wheel 50 psi - Kenda/Loadstar

This item is used on PWT-2213B, and PWT-2214B trailer models. Tire Capacity of 1360lbs (615kg). Speed rating of 81 mph. Max 50 PSI.

MODEL: CFT175DLRC-S

Used on

General

Dry Launch 60″ Red Triple Light Bar

This light bar can be mounted to all Double PWT, and Pontoon Boat Trailer models. It is secured with two 12 x 3/4″ Zinc Hex Washer Head Tek #3 Screws.

MODEL: CFLIGHTBAR-60

Optional for

General

ST175/80D13 C Load Range 13″ Galv. Tire & Wheel 65 psi

SThis item is used on PWT-2213G, PWT-2214G, and our smaller Pontoon Boat Trailer models. Speed rating is 81 mph

MODEL: CFST175DLRC-G

Used on

General

32″ Galvanized Winch Assembly w/ Dutton-Lainson 600LB Winch

This assembly includes:

- 32" Galvanized Winch Post

- Dutton-Lainson 600 lb Capacity Crank Winch

- Winch Poly Bow Roller Assembly

- Galvanized Winch Assembly Mounting Kit

When mounted, the standard height for the bow roller is 18", but it can be adjusted to accommodate your particular boat.

MODEL: CFWNCH2213

Used on

General

14″ Galvanized Winch Assembly w/ DL 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a Dutton-Lainson 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit. When mounted, the standard height for the bow roller is 12", but it can be adjusted to accommodate your particular boat.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH1000G

Used on

General

17' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH16

Used on

General

ST175/80R13 D Load Range 13″ Galvanized Tire & Wheel 65 psi

This item is used on our PT-2426, and PT-2628 Trailer Models, but is also an upgradable option for all Trailer Models with 13" Tires. Speed rating is 81 mph.

MODEL: CFT175DLRD-G

Used on

Upgrade for

General

Jammy J-51-A 3/4" Single Diode PC Side Marker Light

The Jammy diode side marker light is a 3/4″ Round Single Diode, Amber-Colored LED Marker Light (PC Rated) that mounts in 3/4″ diameter holes. This model includes a mounting grommet, and 6″ leads with blunt cut ends.

MODEL: CFLIGHTSDMRKR-LED(J-51-A)

General

2 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayak/canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable

- 2x2x11 gauge upright bracing for universal fit

- 2x2x14 gauge cross braces

This is a conversion kit only and requires a trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

Kayak Setup - CFKIT-KAY(2)

• 2x 24" Uprights
• 2x 60" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for use with Tie Downs
• 8x Galvanized Lock Nuts for locking in Eye Bolts

Canoe Setup - CFKIT-CAN(2)

• 2x 24" Uprights
• 2x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for Securing Tie Downs
• 8x Galvanized Lock Nuts for Securing Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

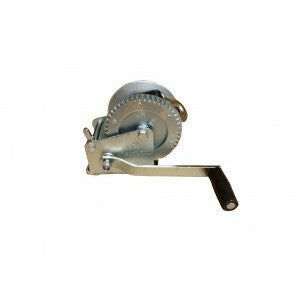

RAM 600 lb Capacity Crank Winch w/ Mounting Kit

This item is a light duty winch with permanently lubricated bearings used for horizontal pulling applications. The item has a 12′ Winch Strap w/ Spring Loaded Hook and Loop End, and a RAM 600 lb Winch Handle. The mounting materials are sold separately.

Mounting Kit Includes:

2 - 3/8"-16 x 1" Zinc Hex Head Cap Bolt

2 - 3/8"-16 Serrated Zinc Flange Nuts

MODEL: CFWNCH600TT

Used on
