Winch Hardware

General

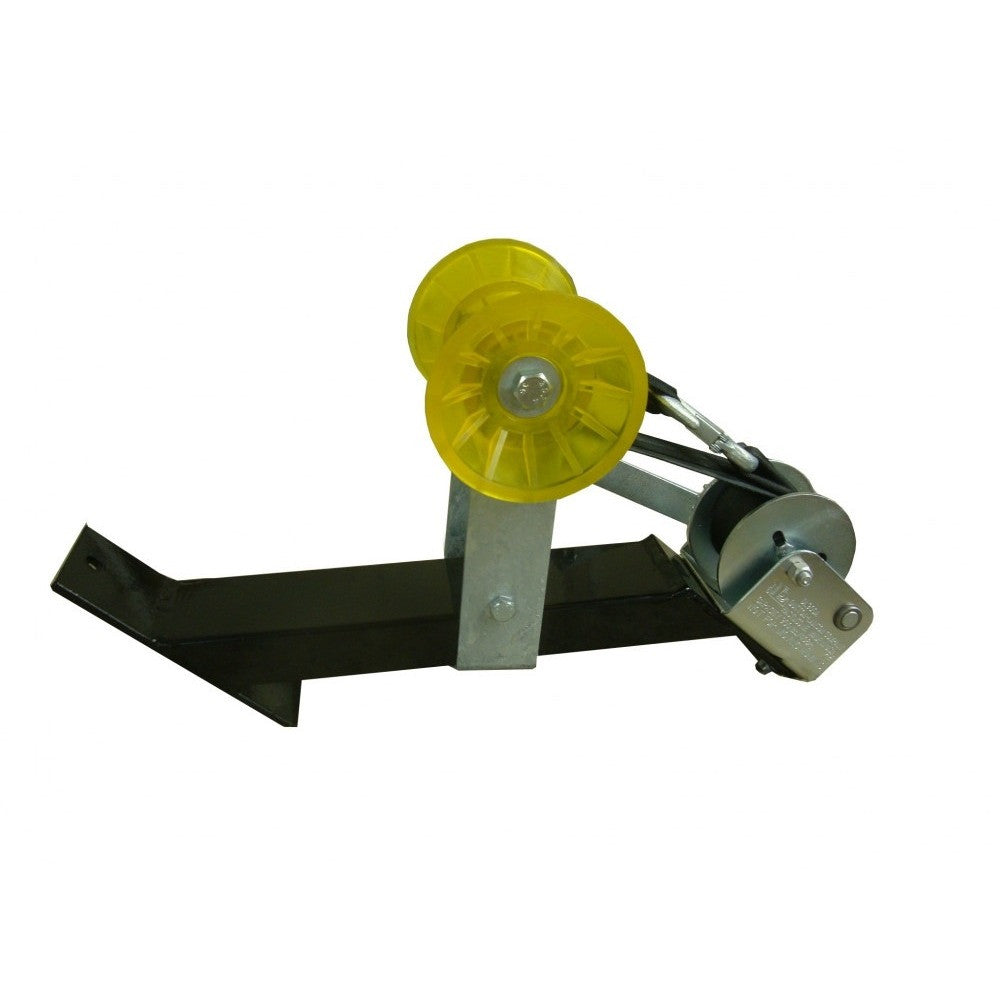

Zinc U Bolt Winch Assembly Mounting Kit for Black Powder Coated Trailers

This kit has all of the requisite materials needed to mount a Black Powder Coated Winch Assembly onto any Black Powder Coated PWT trailer model.

Materials Include:

2 – 3/8″-16 x 3" x 4.5″ Zinc U-Bolt

2 – 5" x 1.25" x .25" Zinc Flat Plate

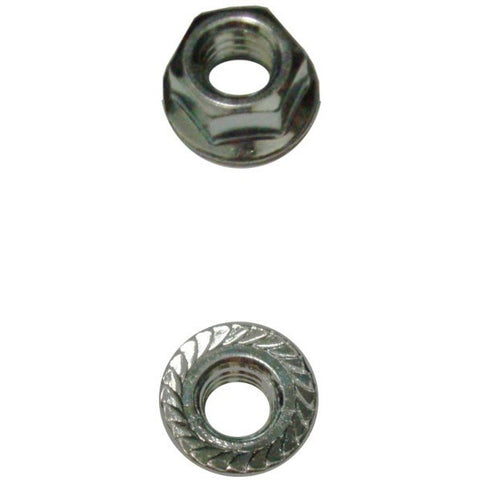

4 – 3/8″-16 Zinc Plated Serrated Flange Nuts

MODEL: CFWNCHKIT-(PWC-Z)

Used on

General

32″ Galvanized Winch Assembly w/ Dutton-Lainson 600LB Winch

This assembly includes:

- 32" Galvanized Winch Post

- Dutton-Lainson 600 lb Capacity Crank Winch

- Winch Poly Bow Roller Assembly

- Galvanized Winch Assembly Mounting Kit

When mounted, the standard height for the bow roller is 18", but it can be adjusted to accommodate your particular boat.

MODEL: CFWNCH2213

Used on

General

Galvanized Winch Assembly Mounting Kit

This kit contains all of the requisite materials needed to mount a Galvanized Winch Assembly onto all Galvanized PWT trailer models.

Materials Include:

2 – 3/8″ x 3.06" x 4.5″ Galvanized U-Bolt

2 – 5" x 1.25" x .25" Galvanized Flat Plate

4 – 3/8″ Galvanized USS Flat Washer

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCHKITG

Used on

General

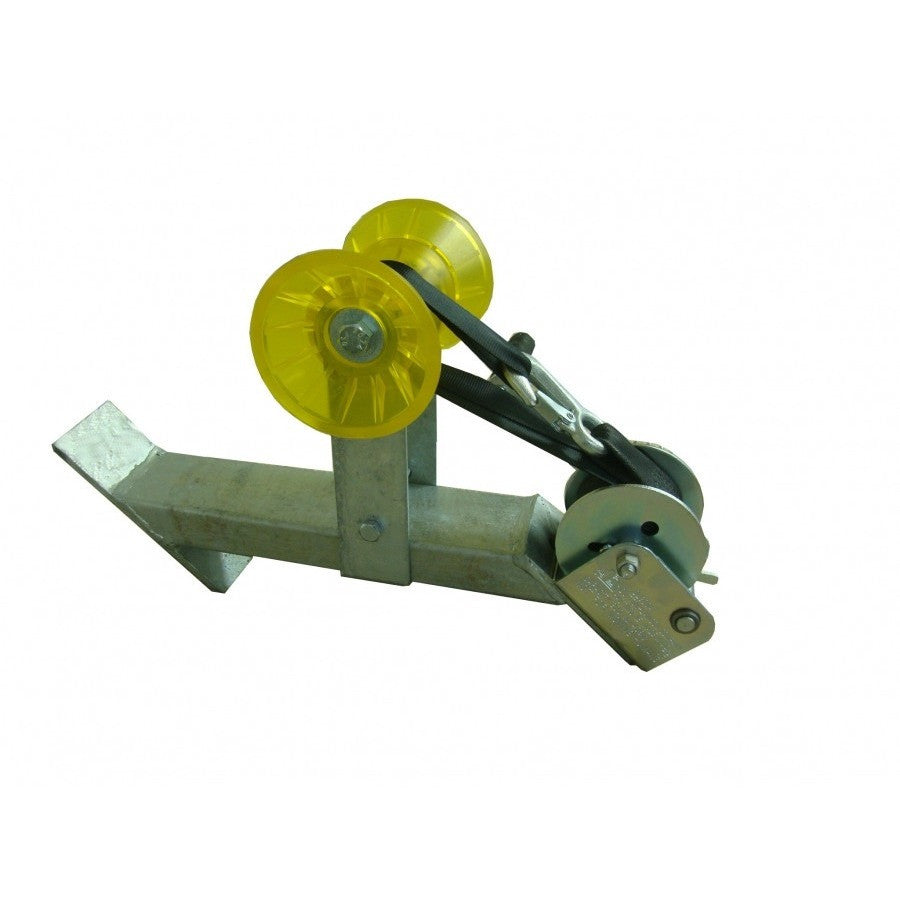

14″ Galvanized Winch Assembly w/ DL 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a Dutton-Lainson 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit. When mounted, the standard height for the bow roller is 12", but it can be adjusted to accommodate your particular boat.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH1000G

Used on

General

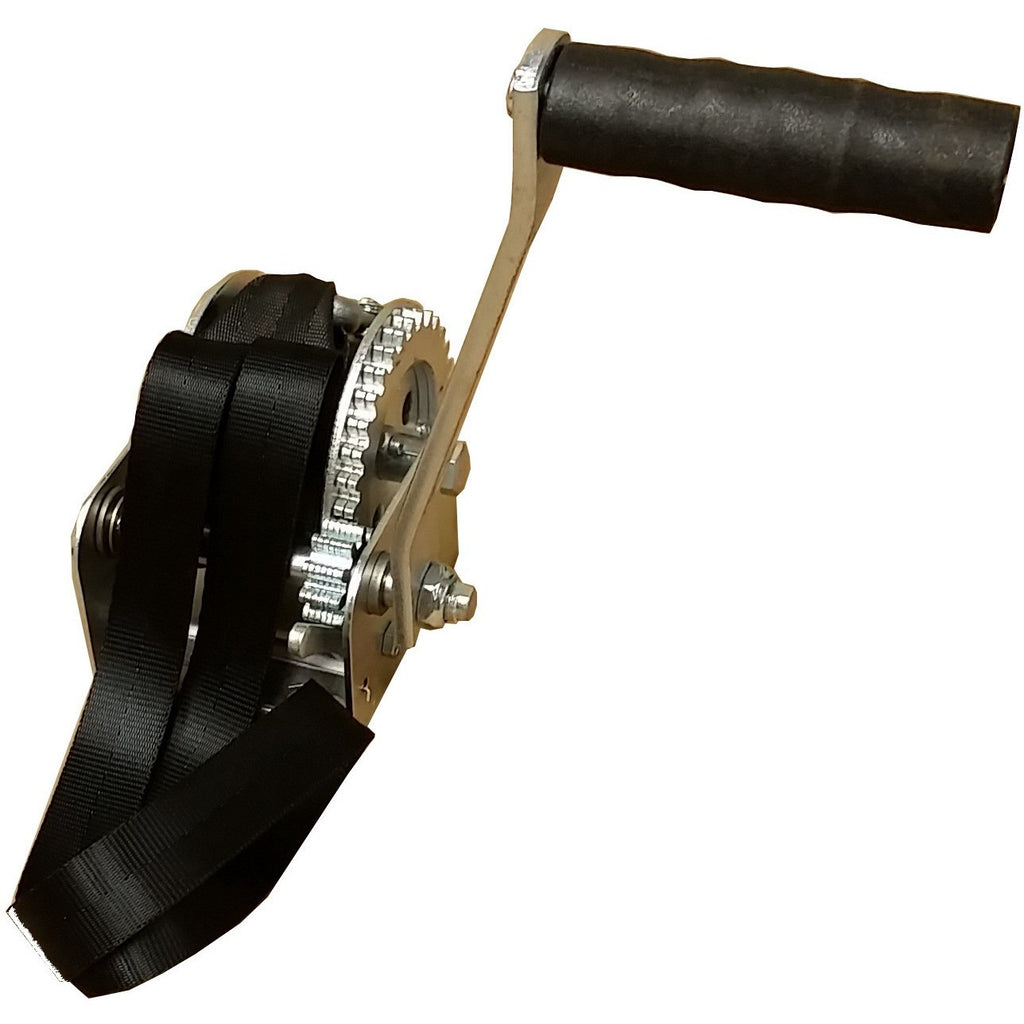

Dutton-Lainson 900 lb Capacity Crank Winch

This item is a heavy duty winch used for horizontal pulling applications. It contains high carbon steel gears, permanently lubricated bearings, and a zinc tuffplate finish. A 12′ Winch Strap w/ Spring Loaded Hook and Loop End, and a Dutton-Lainson 900 lb Winch Handle. The mounting materials are sold separately.

Mounting Kit Includes:

2 - 3/8"-16 x 1" Zinc Hex Head Cap Bolt

2 - 3/8"-16 Serrated Zinc Flange Nuts

MODEL: CFWNCH900DL

Used on

General

Winch Poly Bow Roller Assembly

This kit is part of every Winch Assembly used on every PWT, and Jon Boat Trailer model.

Materials Include:

1 – Galvanized Bow Stop Bracket

1 – 3/8″-16 x 3.75″ Zinc Hex Head Cap Bolt

1 – 3/8″-16 Zinc Hex Flange Top Lock Nut

1 – 1/2″-13 x 4.5″ Zinc Hex Head Cap Bolt

1 – 1/2″-13 Zinc Top Lock Nut

1 – 3″ Amber Poly Bow Roller

2 – 3″ Amber Poly Bow Roller Bell End

2 – 1/2″- Zinc Flat Washer

MODEL: CFASSM-WNCHRLR(3)

Used on

General

Jon Boat Trailer Winch Assembly Mounting Kit

This kit contains all of the requisite materials needed to mount a 32" Galvanized Winch Assembly w/DL 600 onto all Jon Boat Trailer models.

Materials Include:

2 – 3/8″ x 3.06" x 5.25″ Zinc U-Bolt

2 – 5" x 1.25" x .25" Galvanized Flat Plate

4 – 3/8″-16 Serrated Zinc Flange Nuts

MODEL: CFWNCHKIT-(JBT)

Used on

General

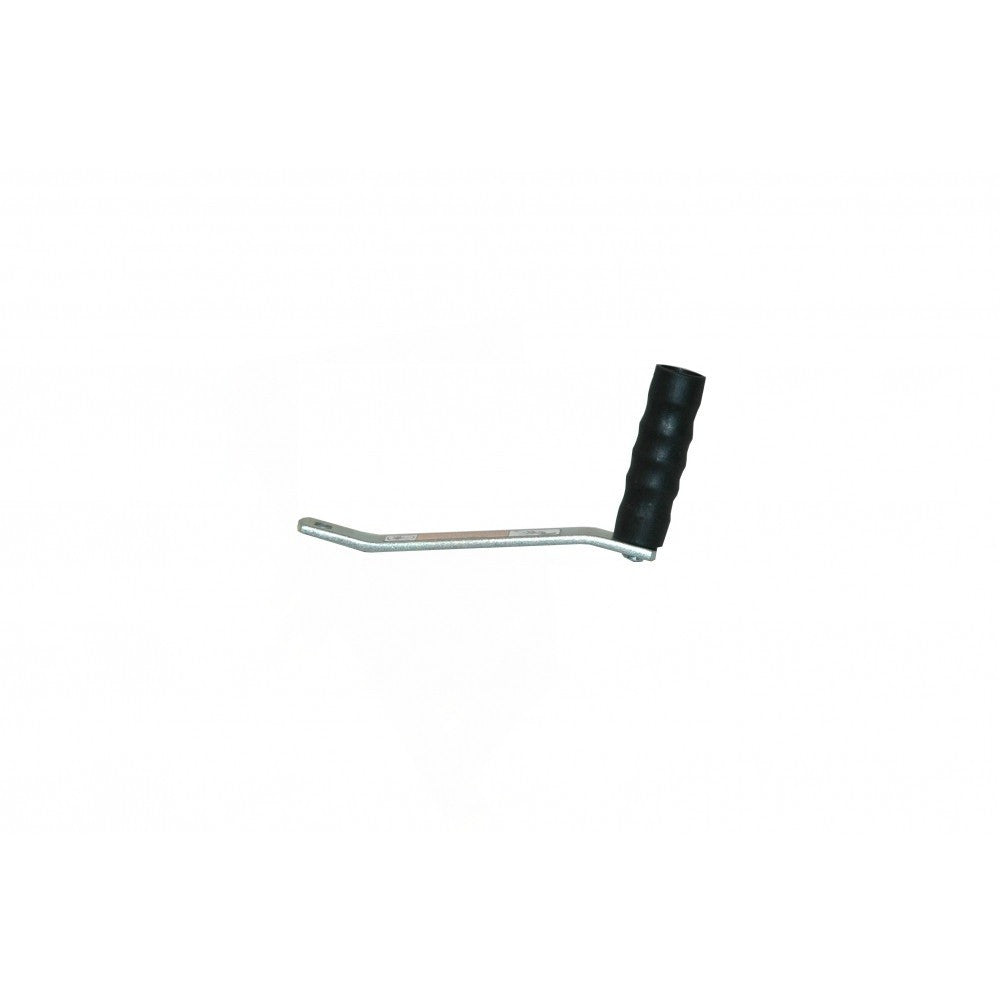

Dutton-Lainson 600 lb Winch Handle

This ergonomic handle attaches to a Dutton-Lainson 600 lb Capacity Crank Winch with 1/2" Nylock Nut.

DUTTON-LAINSON MODEL: #70304

MODEL: CFWNCHHANDLE-DL600

Used on

General

RAM 600 lb Capacity Crank Winch w/ Mounting Kit

This item is a light duty winch with permanently lubricated bearings used for horizontal pulling applications. The item has a 12′ Winch Strap w/ Spring Loaded Hook and Loop End, and a RAM 600 lb Winch Handle. The mounting materials are sold separately.

Mounting Kit Includes:

2 - 3/8"-16 x 1" Zinc Hex Head Cap Bolt

2 - 3/8"-16 Serrated Zinc Flange Nuts

MODEL: CFWNCH600TT

Used on

General

32" Galvanized Jon Boat Trailer Winch Assembly w/ RAM 600LB Winch

This assembly includes:

- 32" Galvanized Winch Post

- RAM 600 lb Capacity Crank Winch

- Winch Poly Bow Roller Assembly

- Jon Boat Trailer Winch Assembly Mounting Kit

MODEL: CFWNCHJBTG

Used on

 General

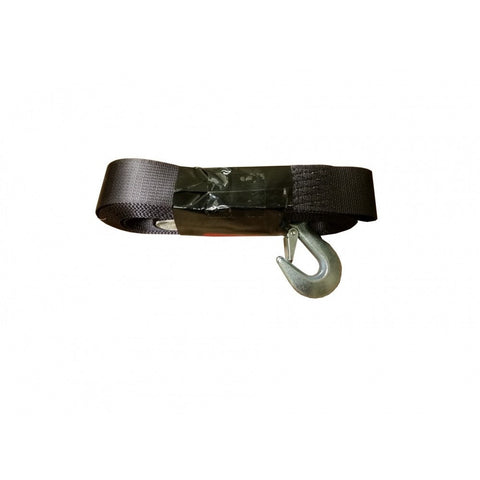

20′ Winch Strap w/ Hook (4000 lb Max Capacity)

• Dutton-Lainson black heavy duty winch strap and hook
• For winches up to 2,600 lb. capacity
• 2" wide x 20' long
• 4,000 lb. breaking strength
• Snap Hook has a tensile strength of 7,500 lbs.
• Includes a 3/8" x 3" bolt, a 3/8" x 3-1/4" bolt, and a 3/8" locknut to install strap onto winch drum

MODEL: CFWNCHSTRAP-20FT(4K-DL)

General

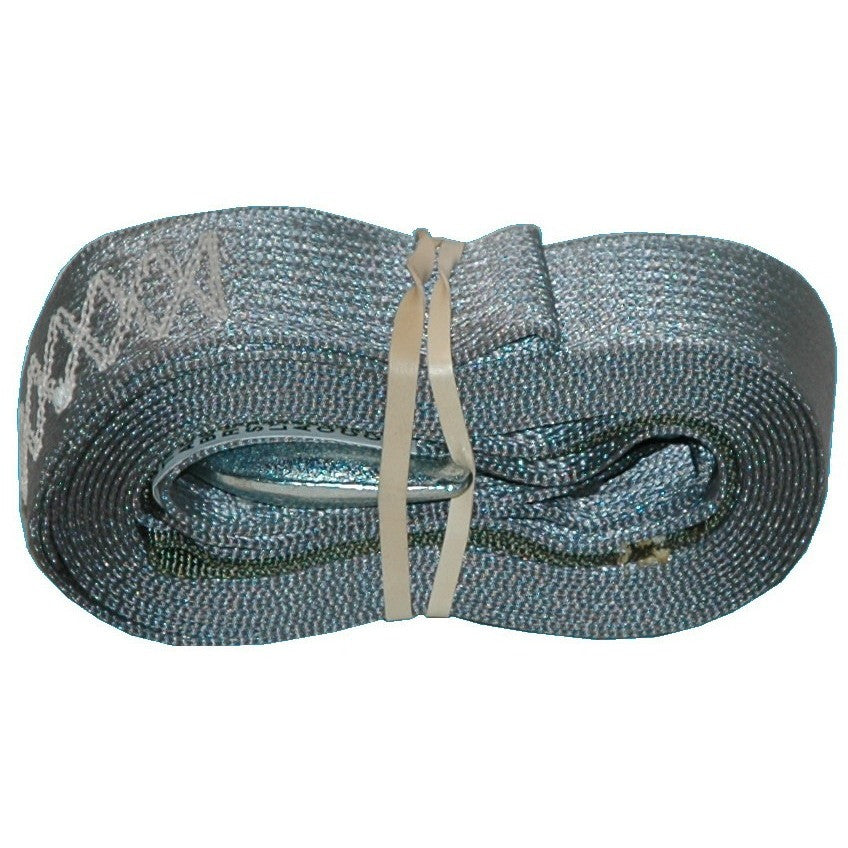

12′ Winch Strap w/ Spring Loaded Hook and Loop End

Strap is generally sold as a replacement part for the Dutton-Lainson 900 lb Capacity Crank Winch (CFWNCH900DL). If you have a Com-Fab PWC trailer this is the replacement strap for your trailer's winch. The strap has the following capabilities:

- Strap working load limit: 1,700 lbs

- Break strength: 2,600 lbs

- 12' Long strap with hook

- Hand saver loop dimensions: 1" x 18"

- Steel hook tensile strength: 3,750 lbs

- Mounting bolt dimensions: 2-1/2" x 1/4" bolt

MODEL: CFWNCHSTRAP-12FT(PWC)

Used on

General

14″ Galvanized Winch Assembly w/ RAM 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a RAM 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH800G

Used on

PWT-800G

General

3" Poly Bow Roller Assembly

This is a section of the Winch Poly Bow Roller Assembly.

Materials Include:

1 – 3″ Poly Bow Roller
2 – 3″ Poly Bow Roller Bell End
1 – 1/2″-13 x 4.5″ Zinc Bolt
2 – 1/2″ Zinc Flat Washer
1 – 1/2″-13 Top Lock Nut

MODEL: CFASSM-POLYRLR(3)

Used on

General

Galvanized Bow Stop Bracket

This item is part of the Winch Poly Bow Roller Assembly used on every type of winch stand for all Jon Boat, and PWT trailer models.

MODEL: CFBRKTWNCHRLR

Used on

General

14″ Galvanized Winch Post

This item is used as part of 14" Galvanized Winch Assemblies for Single Galvanized PWT Trailers.

14" Galvanized Winch Assembly w/ DL900 lb Winch

14″ Galvanized Winch Assembly w/ RAM 600 lb Winch

MODEL: CFWNCHPOST-1000G

Used on

General

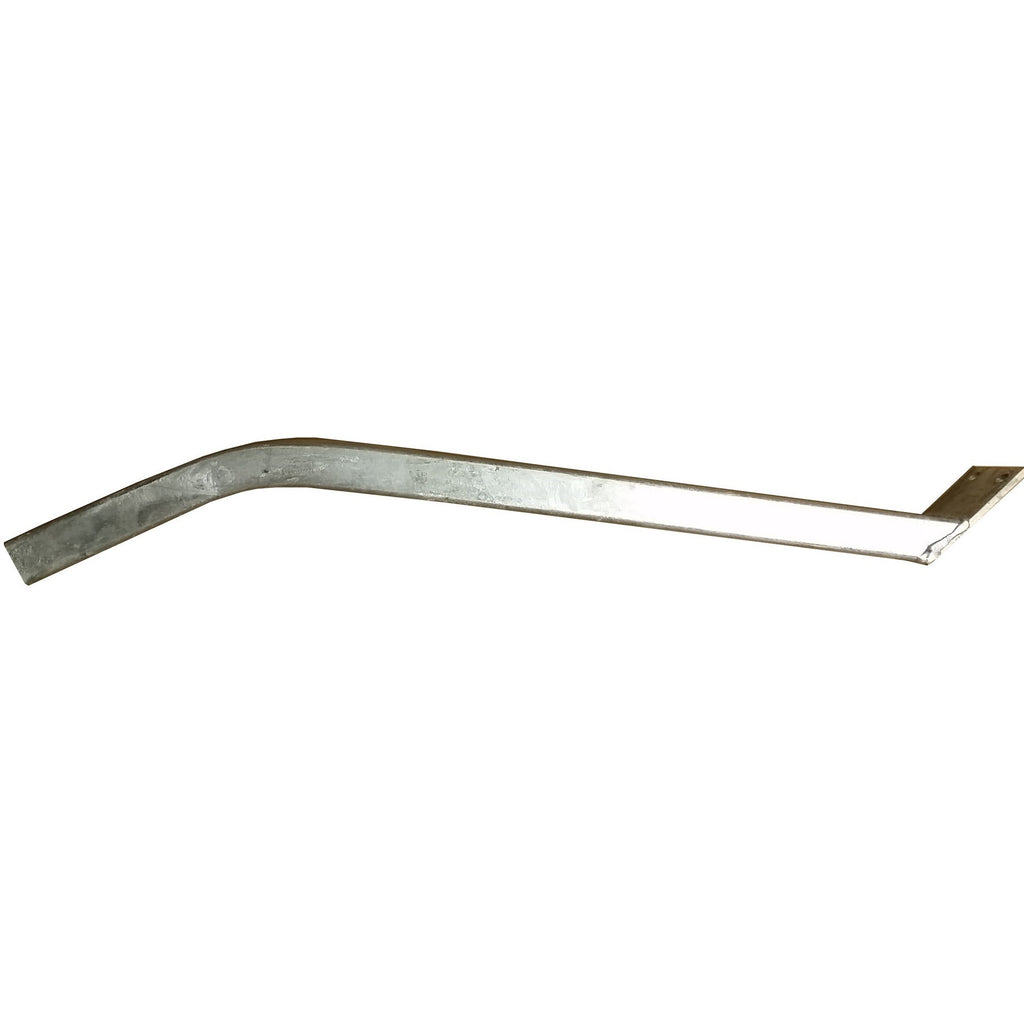

32″ Galvanized Winch Post

- This item is part of the 32″ Galvanized Winch Assembly which is mounted to the PWT-2213G, and PWT-2214G trailer models.

- This item is part of the 32" Galvanized Jon Boat Trailer Winch Assembly which is mounted every Jon Boat Trailer model.

MODEL: CFWNCHPOST32-G

Used on

General

3/8″-16 x 3.06" x 4.5″ Galvanized U-Bolt

This item is part of these kits:

- Galvanized Winch Assembly Mounting Kit

- Jon Boat Trailer Bow Support Bunk Mounting Kit

MODEL: CFUBLT3/8X4.5G

Used on

General

3/8"-16 Zinc Hex Flange Top Lock Nut Zinc

This item is part of the:

– 1000B - Bunk Mounting Kit

– 2212B - Fender Mounting Kit

– 2213B - Fender Mounting Kit

– Winch Poly Bow Roller Assembly

– Pontoon Boat Trailer Winch Assembly

MODEL: CFNUT3/8LOCKZ

Used on

ALL COM-FAB TRAILER MODELS

General

3/8″-16 x 1″ Zinc Hex Head Cap Bolt

This item is used with 3/8"-16 Serrated Zinc Flange Nuts to mount all crank winch models onto every type of winch post. It is also part of the 2213B - Bunk Mounting Kit used to mount bunks onto PWT-2213B, and PWT-2214B trailer models.

MODEL: CFBLT3/8X1Z

Used on

ALL COM-FAB TRAILER MODELS

General

Dutton Lainson 1400 lb Capacity Heavy Duty Winch

This item is a Dutton Lainson Heavy Duty Winch w/ 1400 lb capacity for horizontal pulling applications and 2 speeds.

Materials Included:

– 1/2″ Zinc Nylock Nut for RAM 600/1600 Winch Handle

MODEL: CFWNCH1400DL

Used on

General

Heavy Duty Pontoon Trailer Winch Assembly Mounting Kit for 5"x3" Trailer Tongues

This kit contains all of the requisite materials needed to mount a Pontoon Winch Assembly onto a Heavy Duty Galvanized Pontoon/Tritoon Trailer model.

Materials Include:

2 – 1/2"-13 x 3.06" x 6.31" Galvanized U-Bolts

2 – 1/2" SAE Galvanized Flat Washers

2 – 1/2"-13 Galvanized Tri-Lock Nuts

MODEL: CFWNCHKIT-(PTHD-G)

Used On

Model DL2500A Winch with Heavy Duty Strap (25 ft.) Installed

General

Galvanized Pontoon Winch Stand & Stair/Handrail Combo w/ D.L. 1400LB Capacity Crank Winch and Anti-slick Grip Stairs

This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

Used on

PT-1618

PT-1820

PT-2022

PT-2224

PT-2426
