Trailer Lighting & Wiring

General

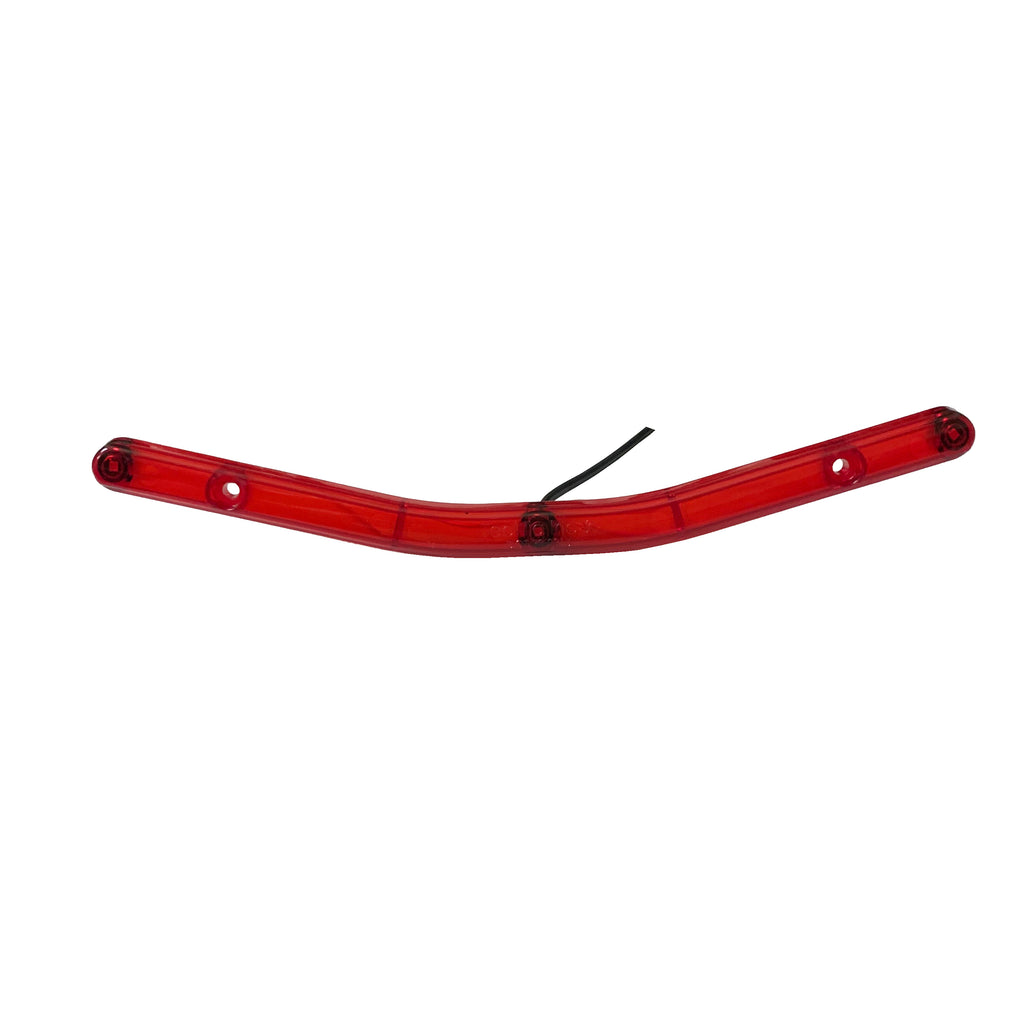

TecNiq Red LED V-Shaped Light Bar w/ 58" Lead

• Used on all Double PWT Trailer models.
• Screws included with purchase
• Fully submersible LED Identification bar
• TecSeal Urethane Potting - Guaranteed Circuit Board Protection
• Durable impact resistant lens
• Available in colored or clear impact resistant lens
• IP68 rating while exceeding FMVSS 108 standards
• Reliable performance over 100,000 hours

MODEL: CFLIGHTBAR-LED(V-TEC)

Used On

General

TecNiq-T86 8 Function 8" Box Driver Side Tail Light w/ Pig Tail.

• Multi-Function 6" box tail light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(L)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

TecNiq-T86 7 Function 6" Box LED Passenger Side Tail Light w/ Pigtail

• These are optional for all Trailer Models.
• Multi-Function 6" Box Tail Light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(R)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

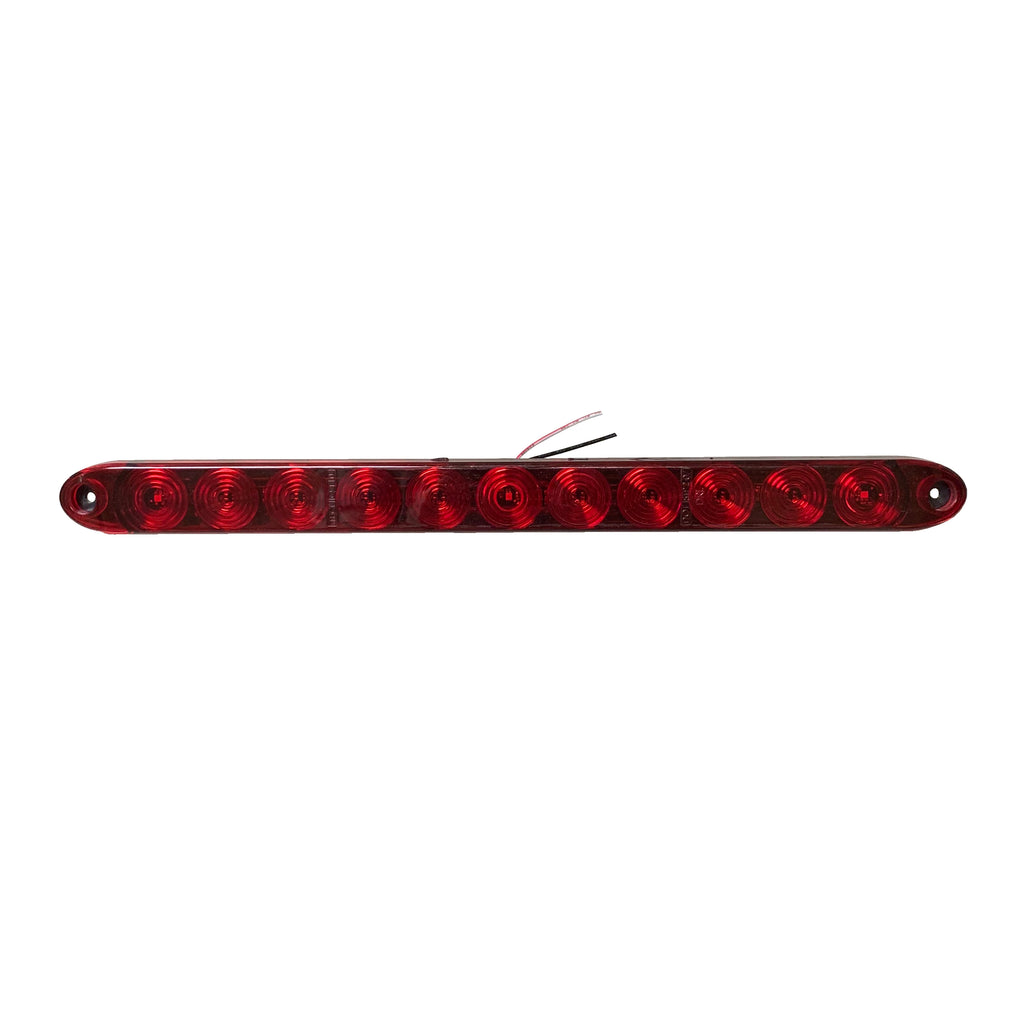

Red Low Profile ID Light Bar w/ Ground Terminal

• Used on all Pontoon Trailer models
• Screws included with purchase
• Meets all FMVSS 108 requirements for wide and narrow vehicles
• IP68 Rated - Dust and water proof with hermetic seal
• TecSeal Urethane Potting - Guaranteed Circuit Board Protection
• Durable impact resistant lens
• Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
• Reliable performance over 100,000 hours
• Can be mounted horizontal, vertical, or at any angle

TecNiq Model No. T10-RR00-1

MODEL: CFLIGHTBAR-LED(S-TEC)

Used On

• Comes with a 1/4" Nut.
• Brilliant illumination in a compact size
• IP 68 Rated - Dust and water proof
• TecSeal Urethane Potting - Guaranteed Circuit Board Protection
• Stud-mounted, no visible fasteners
• Reliable performance over 100,000 hours
• Vertical mount positions meets P2 specifications, while horizontal mount meets PC specifications

TecNiq Part No. S14-RRS1-1

MODEL: CFLIGHTSDMRKR-LED(TEC-R24)

Used on

General

Dry Launch SP7 Red Tail Light (Driver Side) - Incandescent

The Dry Launch submersible 8-function driver side tail light is waterproof with a bulb slide that has a built-in dust and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

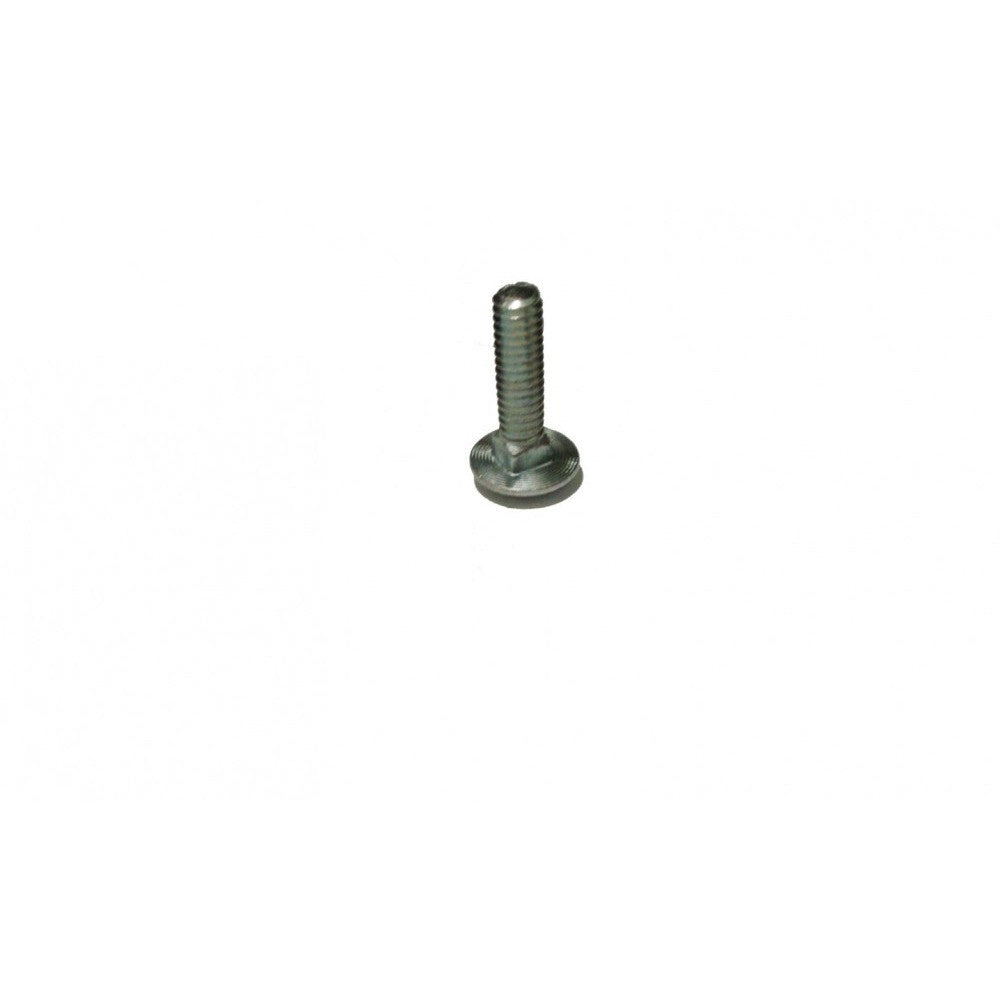

2 - 1/4″ - 18 Tail Light Bolt

2 - 1/4" -18 Zinc Nut

MODEL: CFLIGHTREAR(L)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

Dry Launch SP7 Red Tail Light (Passenger Side) - Incandescent

The Dry Launch submersible 7-function passenger side tail light is waterproof with a bulb slide that has built-in dust, and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″-18 Tail Light Bolt

2 - 1/4"-18 Zinc Nut

MODEL: CFLIGHTREAR(R)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

TecNiq-S14 Amber LED Mini PC Side Marker Light with 24" Lead

• Comes with a 1/4" Nut.
• Brilliant illumination in a compact size
• IP 68 Rated - Dust and water proof
• TecSeal Urethane Potting - Guaranteed Circuit Board Protection
• Stud-mounted, no visible fasteners
• Reliable performance over 100,000 hours
• Vertical mount positions meets P2 specifications, while horizontal mount meets PC specifications

Tecniq Part No. S14-AAS0-1

MODEL: CFLIGHTSDMRKR-LED(TEC-A24)

Used on

General

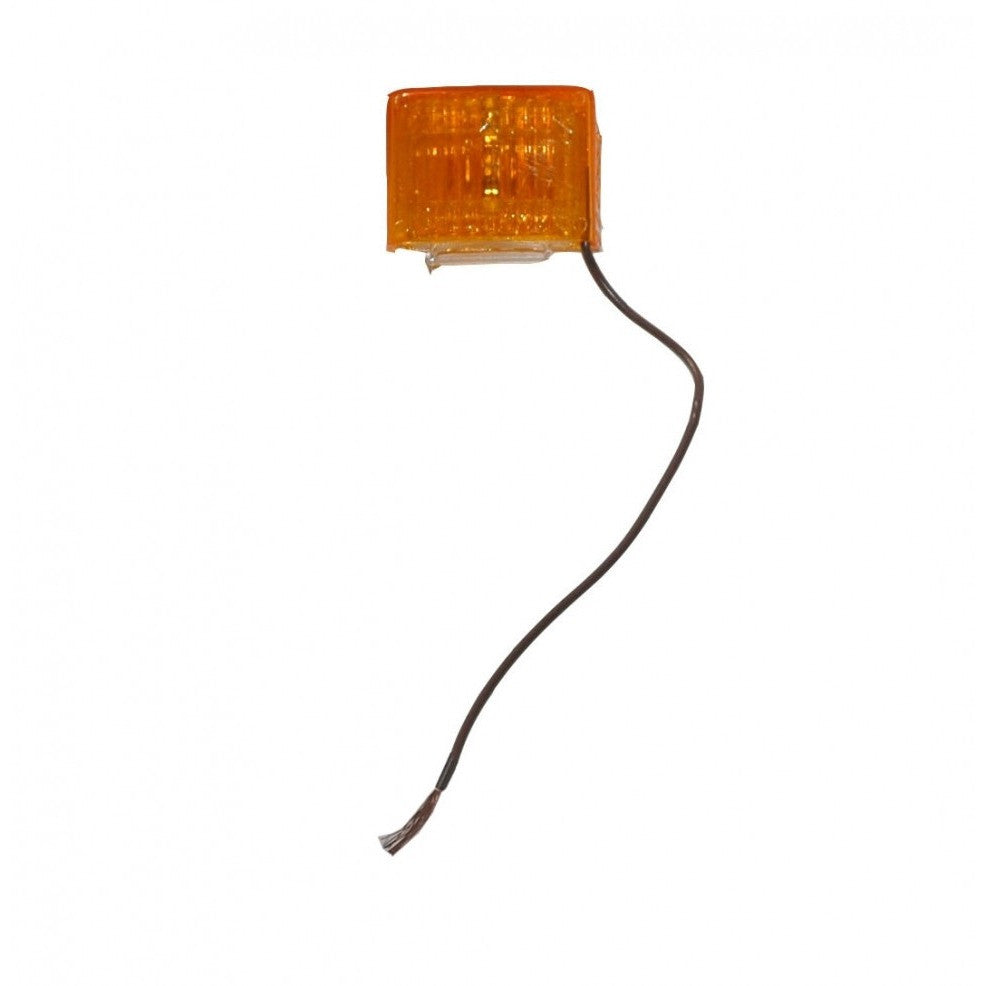

Dry Launch Amber Side Marker Light w/ 10" of Wire

This item is a Dry Launch 203 Series with a snap out bulb slide. You can change the bulb without tools, and mount it with a single stud. It can be used as a Side Marker Light for the tongue of all Pontoon Boat Trailer models.

MODEL: CFLIGHTSDMRKR-10

Optional for

General

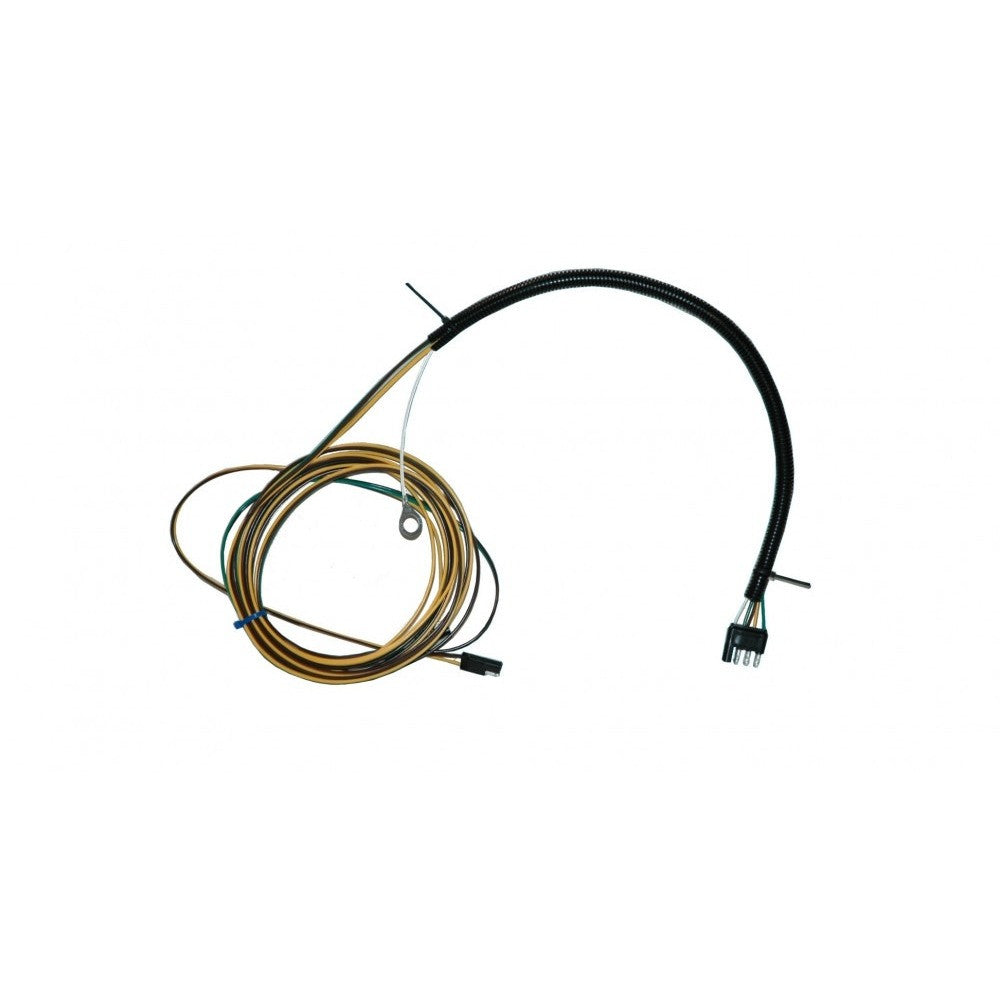

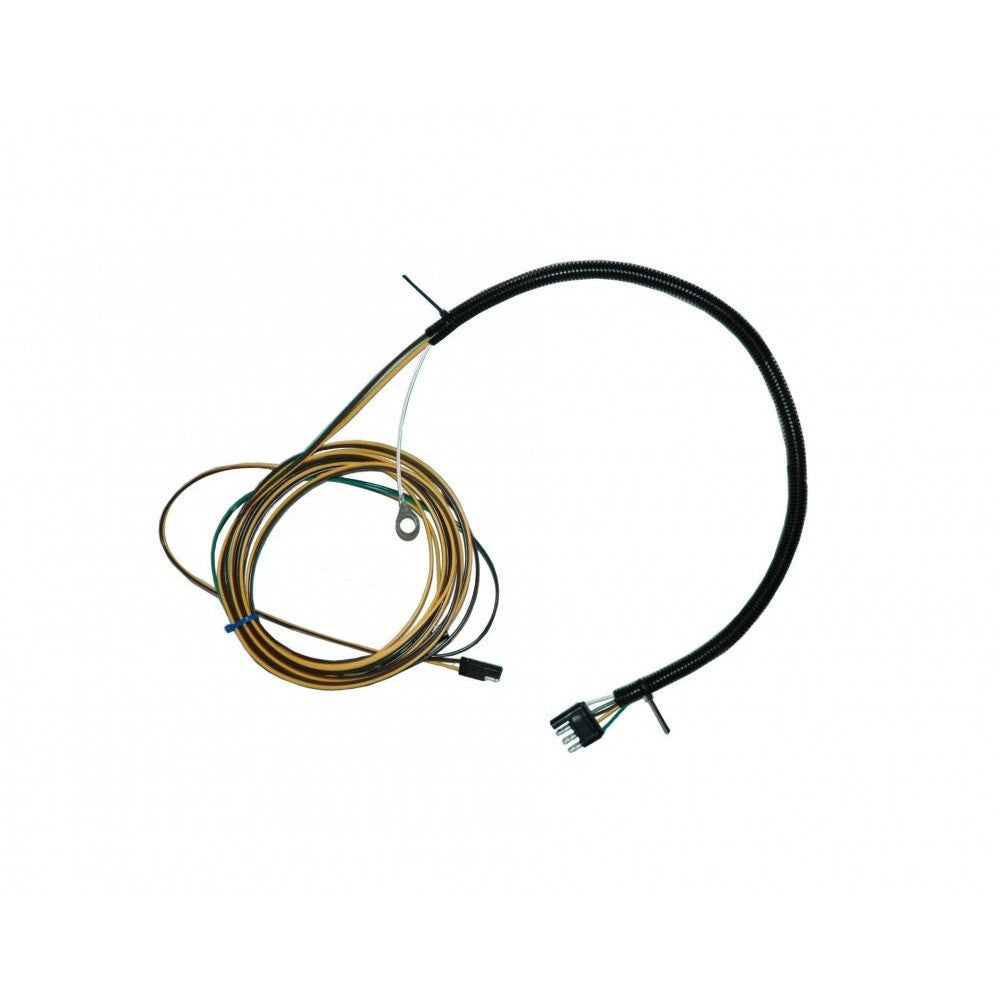

35' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" Ring Terminal.

MODEL: CFWH35

Used on

General

21' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH21

Used on

JBT-1600 ‘RIVER HAWK’

General

15' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the PWT-800 trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH14

Used on

General

17' 4-Pin Wire Harness Assembled w/ Protective Sleeve

The wiring is pulled through the trailer frame to provide connection between the lighting and the vehicle. It connects to the vehicle with a 4-Pin Male Connector. This item comes with a 3/8 20" Protective Sleeve and 30" Ground with 1/2" ring terminal.

MODEL: CFWH16

Used on

General

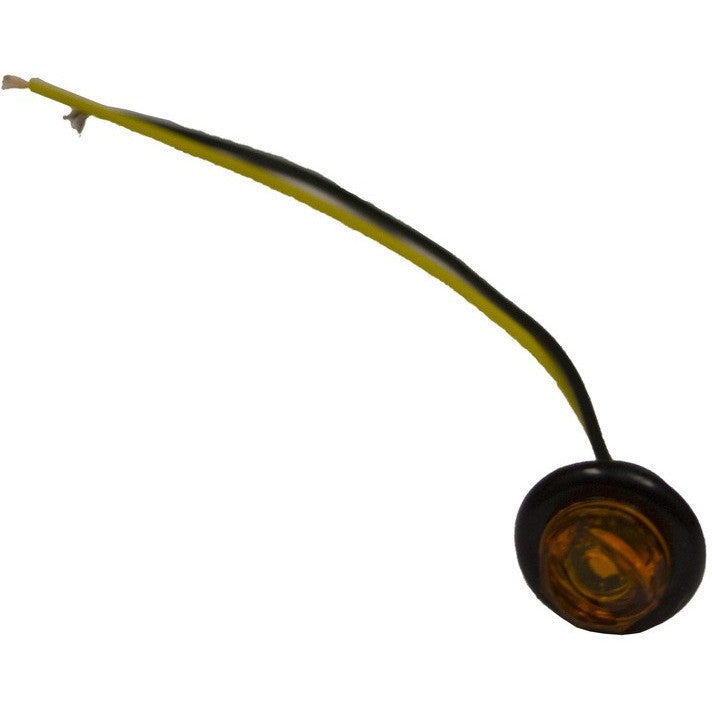

Jammy J-51-A 3/4" Single Diode PC Side Marker Light

The Jammy diode side marker light is a 3/4″ Round Single Diode, Amber-Colored LED Marker Light (PC Rated) that mounts in 3/4″ diameter holes. This model includes a mounting grommet, and 6″ leads with blunt cut ends.

MODEL: CFLIGHTSDMRKR-LED(J-51-A)

General

Dry Launch 60″ Red Triple Light Bar

This light bar can be mounted to all Double PWT, and Pontoon Boat Trailer models. It is secured with two 12 x 3/4″ Zinc Hex Washer Head Tek #3 Screws.

MODEL: CFLIGHTBAR-60

Optional for
