Dry Launch SP7 Red Tail Light (Passenger Side) - Incandescent

The Dry Launch submersible 7-function passenger side tail light is waterproof with a bulb slide that has built-in dust, and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″-18 Tail Light Bolt

2 - 1/4"-18 Zinc Nut

MODEL: CFLIGHTREAR(R)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

2″ Steel Super Lube Grease Dust Cap & Plug for Axle Hub

This item is a part of all hub assemblies and comes as a pair.

Galvanized 5-Bolt Hub Assembly

Powder Coated Black 5-Bolt Hub Assembly

TIE DOWN MODEL: #17093

MODEL: CFAXLE-CAP&PLUG

Used on

ALL COM-FAB TRAILER MODELS

General

Dry Launch SP7 Red Tail Light (Driver Side) - Incandescent

The Dry Launch submersible 8-function driver side tail light is waterproof with a bulb slide that has a built-in dust and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″ - 18 Tail Light Bolt

2 - 1/4" -18 Zinc Nut

MODEL: CFLIGHTREAR(L)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS

General

4.80 x 12″ C Load Range Galvanized Finish Tire & Wheel, Bias - Kenda/Loadstar

This is the tire and wheel used on PWT-800G, PWT-1000G, PWT-1100G, PWT-2212G, and all Jon Boat Trailer models. Tire Capacity is 990lbs (450kg). Speed rating 81 mph.

MODEL: CFT48012G

Used on

General

Complete 545 Bolt 1250/1350LB Hub Assembly w/Bearings, Seal, Amp and Dust Cap - Dexter

Hub Includes:

- Triple Lip Grease Seal - 1.25" I.D. - 1.98"

- 1-1/16" Bearing Cup

- 1-1/16" L44649 Bearings

- 1-1/2"-20 Lug Nut Studs

- 1/2″-20 Lug Nut (Set of 5)

- 1.98" Dust Cap

- Super Lube Rubber Grommet

- Cotter Pin

TIEDOWN MODEL: #46205X

MODEL: CFAXLE-HUB5BLT(1350-G)

Used on

General

TecNiq-T86 7 Function 6" Box LED Passenger Side Tail Light w/ Pigtail

• These are optional for all Trailer Models.
• Multi-Function 6" Box Tail Light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(R)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

TecNiq-T86 8 Function 8" Box Driver Side Tail Light w/ Pig Tail.

• Multi-Function 6" box tail light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(L)-LED(TEC)

Used on

ALL COM-FAB TRAILER MODELS

General

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

TIE DOWN MODEL: #13086

MODEL: CFAXLE5-LSPRNG(SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

Winch Poly Bow Roller Assembly

This kit is part of every Winch Assembly used on every PWT, and Jon Boat Trailer model.

Materials Include:

1 – Galvanized Bow Stop Bracket

1 – 3/8″-16 x 3.75″ Zinc Hex Head Cap Bolt

1 – 3/8″-16 Zinc Hex Flange Top Lock Nut

1 – 1/2″-13 x 4.5″ Zinc Hex Head Cap Bolt

1 – 1/2″-13 Zinc Top Lock Nut

1 – 3″ Amber Poly Bow Roller

2 – 3″ Amber Poly Bow Roller Bell End

2 – 1/2″- Zinc Flat Washer

MODEL: CFASSM-WNCHRLR(3)

Used on

General

TecNiq License Plate Bracket

TECNIQ MODEL: L95-0B00-1

MODEL: CFTAG-TEC

Used on

ALL COM-FAB TRAILER MODELS

General

2 x 4 x 6′ Carpeted Black Marine Bunk Board

These are used on PWT-1000, PWT-1100, PWT-2213, PWT-2214, and all Jon Boat Trailer models.

1000B - Bunk Mounting Kit

1000G - Bunk Mounting Kit

2213B - Bunk Mounting Kit

2213G - Bunk Mounting Kit

Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-6FT

Used on

General

1500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

4.80 x 12″ C Load Range Silver E-Coat Finish Tire & Wheel, Bias - Kenda/Loadstar

This is the tire and wheel used on PWT-800B, PWT-1000B, PWT-1100B, and PWT-2212B black powder coated trailer models. Tire capacity is 990lbs (450kg). Speed rating 65 mph.

MODEL: CFT48012S-LRC

Used on

General

32″ Galvanized Winch Assembly w/ Dutton-Lainson 600LB Winch

This assembly includes:

- 32" Galvanized Winch Post

- Dutton-Lainson 600 lb Capacity Crank Winch

- Winch Poly Bow Roller Assembly

- Galvanized Winch Assembly Mounting Kit

When mounted, the standard height for the bow roller is 18", but it can be adjusted to accommodate your particular boat.

MODEL: CFWNCH2213

Used on

General

12′ Winch Strap w/ Spring Loaded Hook and Loop End

Strap is generally sold as a replacement part for the Dutton-Lainson 900 lb Capacity Crank Winch (CFWNCH900DL). If you have a Com-Fab PWC trailer this is the replacement strap for your trailer's winch. The strap has the following capabilities:

- Strap working load limit: 1,700 lbs

- Break strength: 2,600 lbs

- 12' Long strap with hook

- Hand saver loop dimensions: 1" x 18"

- Steel hook tensile strength: 3,750 lbs

- Mounting bolt dimensions: 2-1/2" x 1/4" bolt

MODEL: CFWNCHSTRAP-12FT(PWC)

Used on

General

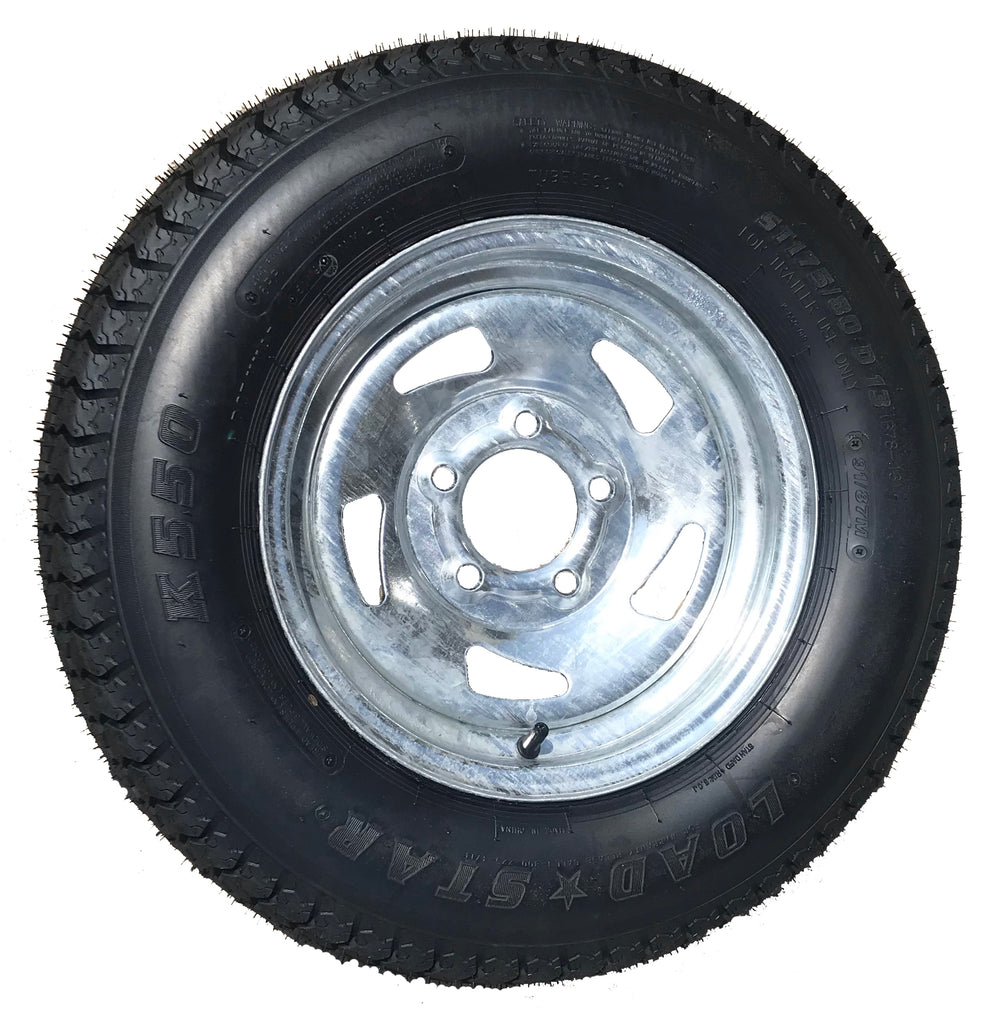

ST175/80D13 C Load Range 13″ Galv. Tire & Wheel 65 psi

SThis item is used on PWT-2213G, PWT-2214G, and our smaller Pontoon Boat Trailer models. Speed rating is 81 mph

MODEL: CFST175DLRC-G

Used on

General

1-1/16" L44649 Bearings

These bearings fit a 1-1/16" diameter Spindle Shaft, and are used with L44610 Bearing Cups. These are used on Tie-Down #1350, and #1750 Hubs

UNIVERSAL MODEL: L44649

TIE DOWN MODEL: #11054

MODEL: CFAXLE-BRG(1-1/16")-INNER/OUTER

Used on

ALL COM-FAB PWC, JON BOAT, AND CANOE/KAYAK TRAILER MODELS

General

TecNiq-S14 Amber LED Mini PC Side Marker Light with 24" Lead

• Comes with a 1/4" Nut.
• Brilliant illumination in a compact size
• IP 68 Rated - Dust and water proof
• TecSeal Urethane Potting - Guaranteed Circuit Board Protection
• Stud-mounted, no visible fasteners
• Reliable performance over 100,000 hours
• Vertical mount positions meets P2 specifications, while horizontal mount meets PC specifications

Tecniq Part No. S14-AAS0-1

MODEL: CFLIGHTSDMRKR-LED(TEC-A24)

Used on

General

5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

It is used for mounting Bunk Boards to Galvanized Angular Swivel Brackets, and Pontoon Boat Trailer Bunk Brackets on all trailer models.

MODEL: CFSCRWLAG-5/16-0150

Used on

ALL COM-FAB TRAILER MODELS

General

Dutton-Lainson 900 lb Capacity Crank Winch

This item is a heavy duty winch used for horizontal pulling applications. It contains high carbon steel gears, permanently lubricated bearings, and a zinc tuffplate finish. A 12′ Winch Strap w/ Spring Loaded Hook and Loop End, and a Dutton-Lainson 900 lb Winch Handle. The mounting materials are sold separately.

Mounting Kit Includes:

2 - 3/8"-16 x 1" Zinc Hex Head Cap Bolt

2 - 3/8"-16 Serrated Zinc Flange Nuts

MODEL: CFWNCH900DL

Used on

General

14″ Galvanized Winch Assembly w/ DL 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a Dutton-Lainson 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit. When mounted, the standard height for the bow roller is 12", but it can be adjusted to accommodate your particular boat.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH1000G

Used on

General

Locking Spare Tire Bracket, fits 3″ Width Tubing

This item is used to lock down, and transport a spare tire on all Com-Fab trailer models. Lock not included.

MODEL: CFSTB-TOP

Optional for

ALL COM-FAB TRAILER MODELS

General

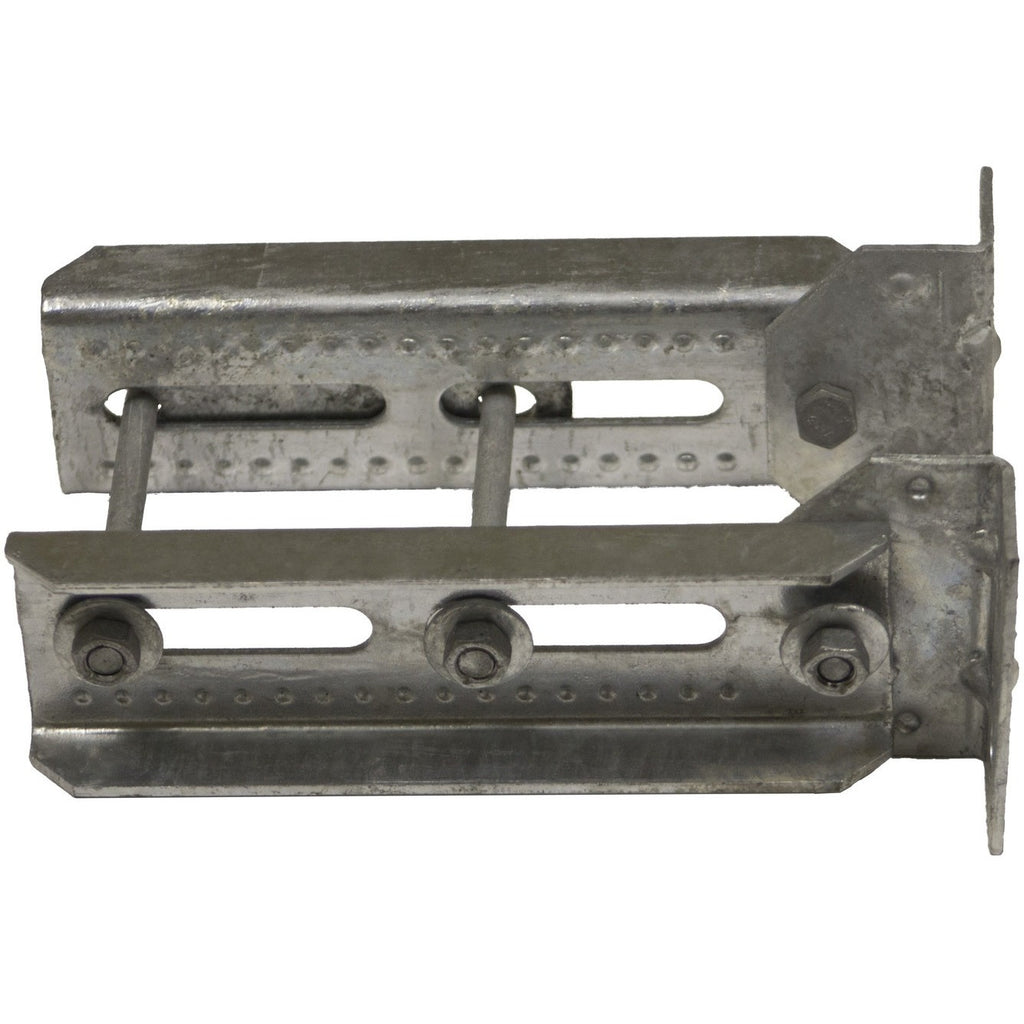

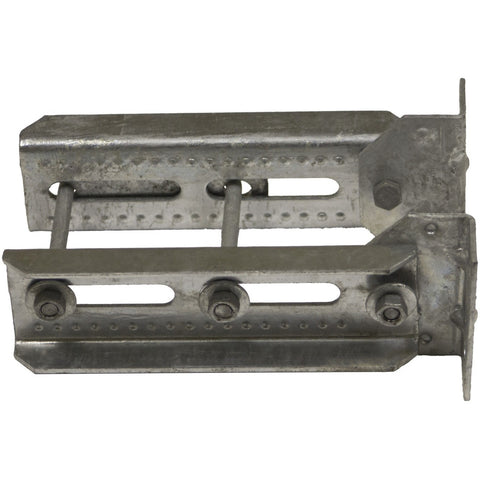

Jon Boat Trailer Bow Support Bunk Mounting Kit

These are all of the requisite materials needed to mount a 2″ x 4″ x 2′ Black Marine Carpeted Bow Support Bunk onto all Jon Boat Trailer models.

Materials Include:

1 – 3/8″ x 3" x 4.5″ Galvanized U-Bolt

2 – 8″ Galvanized Adjustable Bolster Bunk Bracket

4 – 3/8″-16 x 1″ Galvanized Hex Head Bolts

2 – Galvanized Angular Swivel Bracket

4– 3/8″-16 Galvanized Tri-Lock Hex Nut

4 – 3/8″ Galvanized Flat Washer

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

1 - 5" x 1.25" x .25" Galvanized Flat Plate w/ 9/16" Holes

MODEL: CFBNKKIT-BOWSPRT
