2-Leaf Slipper Springs w/ Radius 550 lb Maximum Capacity (Qty 2)

This item is mounted to the 1000 lb Galvanized Trailer Axle, and the 1000 lb Black Powder Coated Trailer Axle using a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13070

MODEL: CFAXLE2-LSPRNG(SL)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3-Leaf Double Eye Springs 1850 lb Maximum Capacity (Qty 2)

These are mounted to the 2900 lb Idler Trailer Axle, or the 3500 lb Hydraulic Disc Brake Trailer Axle using a 7000# Galvanized Tie Plate Kit. These are used on all of our Single, and Tandem Axle Pontoon Boat Trailer models.

Specifications

Length: 20.00"

Leaf Width: 1.75"

Arch Height: 3.00"

Bushing Type: Nylon

Used on

General

3-Leaf Slipper Springs 750 lb Maximum Capacity (Qty 2)

- This item is mounted to the 1500 lb Galvanized Trailer Axle, as well as the 1500 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

- This item is mounted to the 1500 lb Black Powder Coated Trailer Axle with a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13087

MODEL: CFAXLE-LSPRNG(3-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3.75" x 1.25" x .25" Zinc Steel Shackle Link w/ 9/16" Holes - Replacement Standard Shackle Link

These are used to mount 2900 lb Idler Trailer Axles, or 3500 lb Hydraulic Disc Brake Trailer Axles to frames on all Single and Tandem Axle setups for Pontoon Boat trailers, and are frequently used in conjunction with axle equalizers.

Pontoon Boat Trailer Single Axle Mounting Kit

Pontoon Boat Trailer Tandem Axle Mounting Kit

TIE DOWN MODEL: #44536

MODEL: CFAXLELINK(Z)

Used on

General

3/8"-16 x 1.56" x 3.63" Galvanized U-Bolt - For Standard 1.5" SQ Tubing Axles

This item is part of the Galvanized Tie Plate Kit used to mount 3-Leaf Slipper Springs to Galvanized 1.5" Square Axle Tubing.

TIE DOWN MODEL: #83002G

MODEL: CFAXLE-UBLT(1.5SQ-G)

Used on

General

3/8"-16 x 1.56" x 3.63" Zinc U-Bolt - For Standard 1.5" SQ Tubing Axles

This item is part of the Zinc Axle Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

TIE DOWN MODEL: #83002Z

MODEL: CFAXLE-UBLT(1.5SQ-Z)

Used on

General

4-Leaf Slipper Springs 1000 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2000 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

DEXTER MODEL: #13071

MODEL: CFAXLE-LSPRNG(4-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

TIE DOWN MODEL: #13086

MODEL: CFAXLE5-LSPRNG(SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

7000# Galvanized Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

This item is part of the 7000# Galvanized Tie Plate Kit used to mount 3-Leaf Double Eye Springs on to 3500 lb Hydraulic Disc Brake Trailer Axles, or 2900 lb Idler Trailer Axles.

TIE DOWN MODEL: 44849DG

MODEL: CFAXLE-TIEPLATE(7000-G)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

7000# Galvanized Tie Plate Kit for 2" Square Trailer Axle

This kit is used to mount springs to 2" Square Trailer Axles.

- It is a part of the 3500 lb Hydraulic Disc Brake Trailer Axle, used on Pontoon Boat Trailer models w/ Brakes.

- It is a part of the 2900 lb Idler Trailer Axle, used on Pontoon Boat Trailer models without Brakes.

Materials Include:

2 - 7000# Galvanized Tie Plate for 2" Square Axle Tubing

4 - 1/2"-13 x 2.06" x 4.31" Galvanized U-Bolt

8 - 1/2″-13 Galvanized Tri-Lock Nut

MODEL: CFAXLE-TIEPLATEKIT(7000-G)

Used on

General

7000# Zinc Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

TIE DOWN MODEL: 44849DZ

MODEL: CFAXLE-TIEPLATE(7000-Z)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

General

Galvanized Tie Plate Kit for 1.5" Square Trailer Axles

This kit is used to mount springs to Galvanized 1.5" Square Trailer Axles. The kit is a part of the 1500 lb Galvanized Trailer Axle used on every PWT-1000G, and PWT-1100G trailer model. It is also part of the 1500 lb Extended Galvanized Trailer Axle used on both PWT-2212 trailer models.

Materials Include:

2 - Galvanized Axle Tie Plate for 1.5" Square Trailer Axle

4 - 3/8"-16 x 1.56" x 3.63" Galvanized U-Bolt

8 - 3/8"-16 Galvanized Tri-Lock Nut

8 - 3/8" Galvanized Lock Washer

MODEL: CFAXLEKIT-SPRNGMNT(1.5K-G)

Used on

General

BATIE190G Galvanized Tie Plate Kit for 2" Square Trailer Axle

This kit is used to mount springs to 2" Square Trailer Axles. This kit is part of the 2500 lb Galvanized Trailer Axle used on PWT-2213G, and PWT-2214G trailer models.

Materials Include:

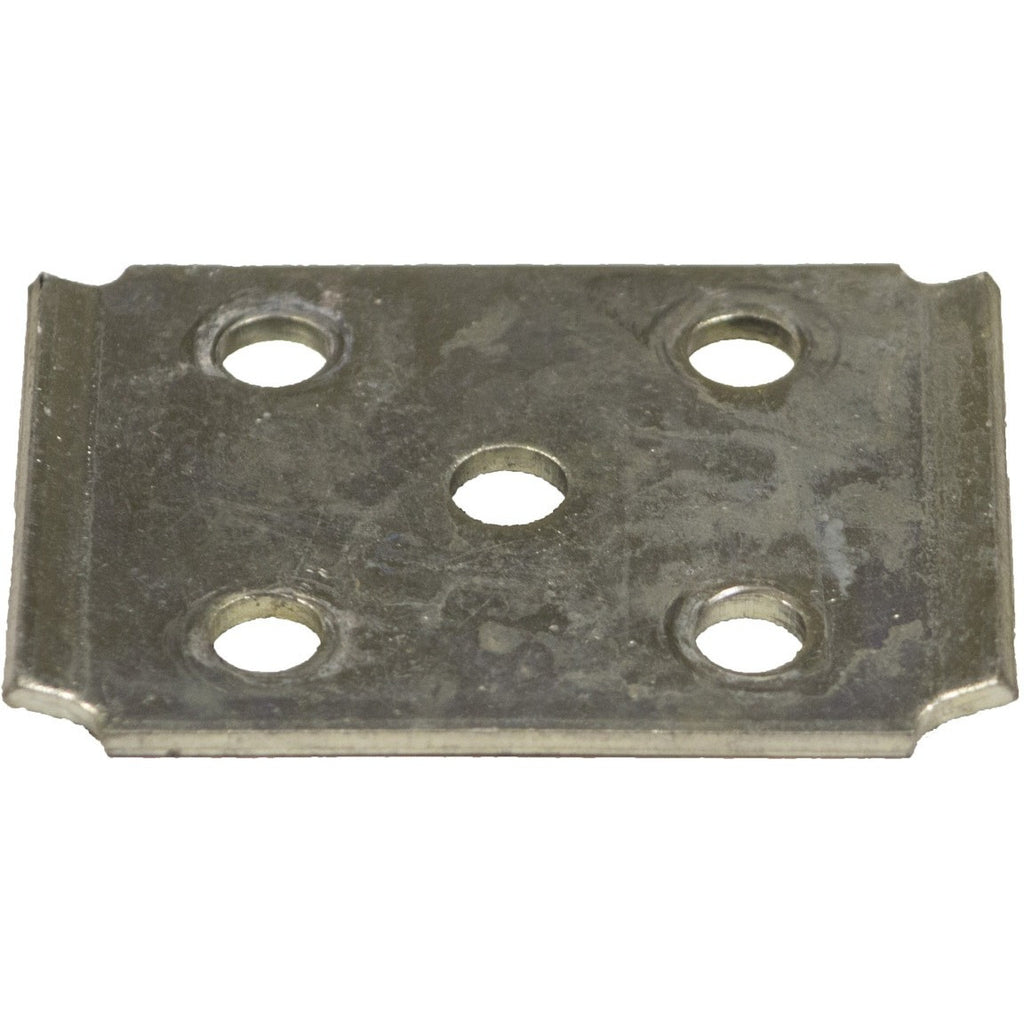

2 - BATIE190G Galvanized Tie Plate for 2" Square Axle Tubing

4 - 1/2"-13 x 2.06" x 4.31" Galvanized U-Bolt

8 - 1/2″-13 Galvanized Tri-Lock Nut

MODEL: CFAXLEKIT-SPRNGMNT(2.5K-G)

Used on

General

Zinc Tie Plate Kit for 1.5" Square Trailer Axle

- This kit is used to mount springs 1.5" Square Trailer Axles.

- This kit is part of both 1000 lb Trailer Axles used on the PWT-800, and Jon Boat Trailer models.

-This kit is also part of the 1500 lb Black Powder Coated Trailer Axle used on the PWT-1000B, and the PWT-1100B.

Materials Include:

2 - Zinc Axle Tie Plate for 1.5" Square Trailer Axle

4 - 3/8"-16 x 1.56" x 3.63" Zinc U-Bolt

8 - 3/8"-16 Zinc Nylock Nut

MODEL: CFAXLEKIT-SPRNGMNT(1.5K-Z)

Used on

General

BATIE190Z Zinc Tie Plate Kit for 2" Square Trailer Axle

This kit is used to mount springs to 2" Square Trailer Axles. This kit is part of the 2500 lb Black Powder Coated Trailer Axle used on PWT-2213B, and PWT-2214B trailer models.

Materials Include:

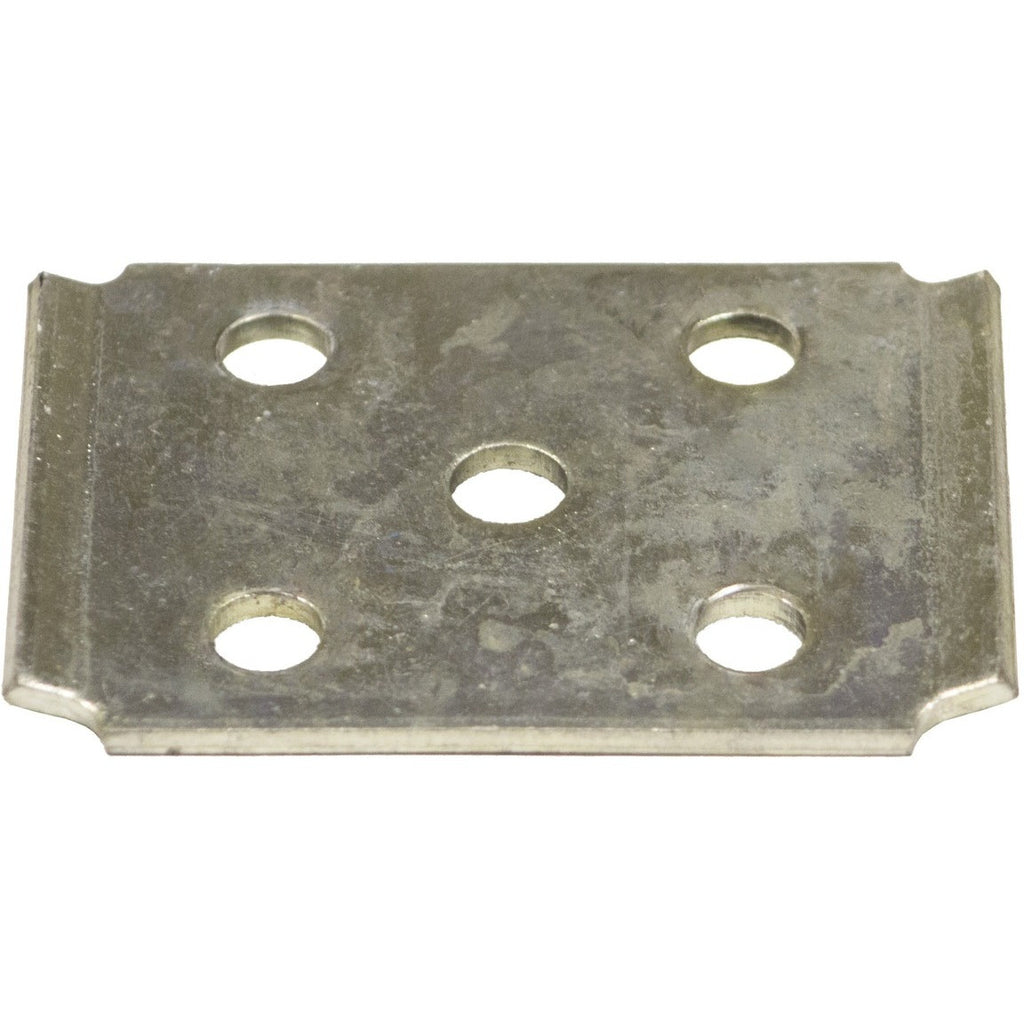

2 - BATIE190Z Zinc Tie Plate for 2" Square Axle Tubing

4 - 1/2"-13 x 2.06" x 4.31" Zinc U-Bolt

8 - 1/2" Zinc Nylock Nut

MODEL: CFAXLEKIT-SPRNGMNT(2.5K-Z)

Used on
