2900 lb Galvanized PWC Idler Trailer Axle w/ 545 Hubs and Springs HF 87 SC 74
$425.00

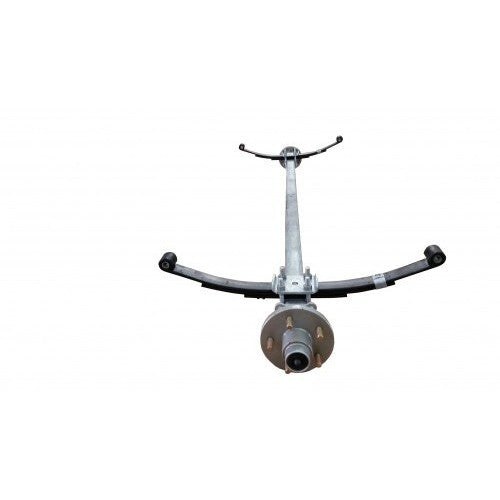

2900 lb Galvanized Idler Trailer Axle w/ 545 Hubs and Springs
*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*
*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*
Materials Include:
1 - 80.375" x 2" x 2" x .17" Gauge Galvanized Axle Tubing
2 - Galvanized 5-Bolt Hub Assembly
2 - 3-Leaf Double Eye Springs (1850 lb)
1 - 7000# Galvanized Tie Plate Kit
- This item is used on all Tandem, and Single Axle Non-Brake Setup Pontoon Boat Trailers.
- It can be mounted to a Single Axle Pontoon Boat Trailer Fender with a Pontoon Boat Trailer Single Axle Mounting Kit.
- Two of them can be mounted to Tandem Axle Pontoon Boat Trailer Fenders with a Pontoon Boat Trailer Tandem Axle Mounting Kit
**Some states require brakes on all axles and/or wheels. please refer to local laws when placing your order. it is up to the individual dealer to stay within the guidelines as set by the legal authorities.
MODEL: CFAXLE2900G(IDLER)
Tubing: 2" Galvanized Square Axle
Load Rating: 2900 lb
Hub Face: 87"
Spring Center: 74"
Overall Length: 92"
Bearing Size: 1-3/8" x 1-1/16"
