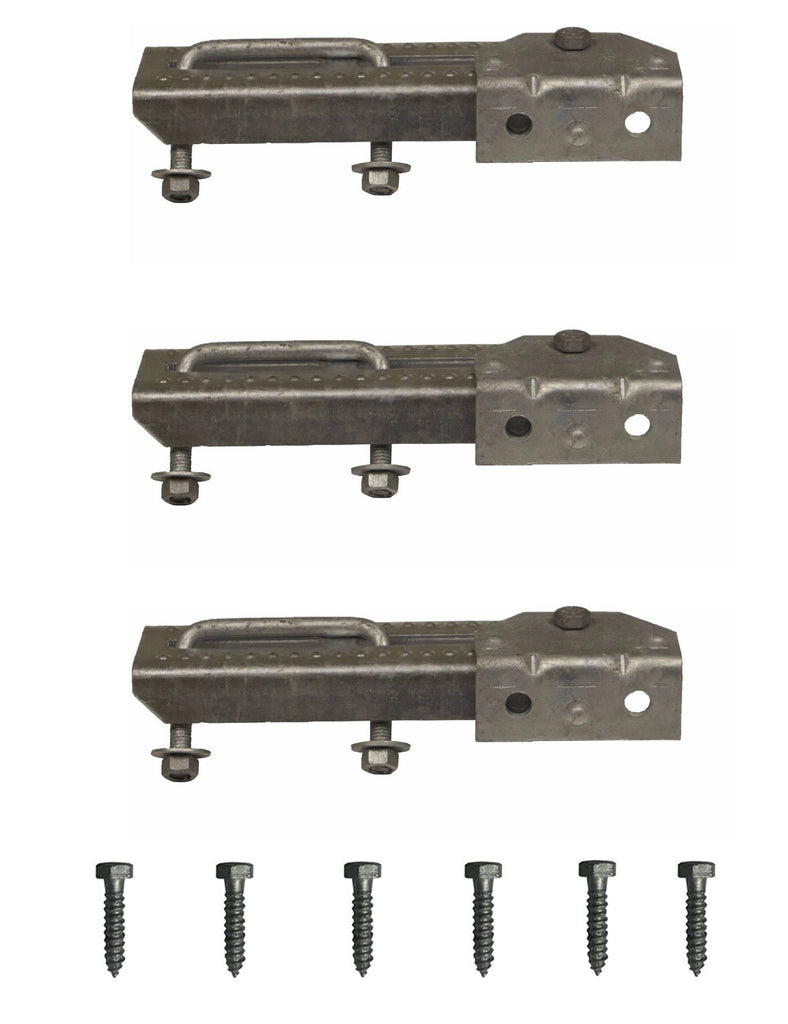

'River Hawk' Jon Boat Trailer Bunk Mounting Kit

This kit contains all of the requisite materials needed to mount a 2″ x 4″ x 10′ Black Marine Carpeted Bunk Board onto the JBT-1600 'River Hawk' Style Jon Boat Trailer model.

Materials Include:

3 – 3/8″-16 x 3.06" x 2.38″ Galvanized U-Bolt

3 – 8″ Adjustable Bolster Bunk Bracket

3 – 3/8″-16 x 1" Galvanized Hex Head Bolt

3 – Galvanized Angular Swivel Bracket

6 – 3/8″-16 Galvanized Tri-Lock Nut

9 – 3/8″-16 Galvanized Flat Washer

6 – 5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-JBT(HAWK)

Used on

JBT-1600 'River Hawk'

General

12 Position Castle Nut

This item is fastened to the end of an Axle Spindle with the use of a 5/32" x 2" Zinc Plated Cotter Pin. This combination secures Hubs to all PWC Trailer Models. It is rated for axles less than 3000 lbs. It is a 1"-14 Thread 12-Slot Castle Nut to fit standard 1" trailer spindles.

TIE DOWN MODEL: #10634

MODEL: CFAXLE-NUT(CASTLE-L)

Used on

General

1-1/16" L44649 Bearings

These bearings fit a 1-1/16" diameter Spindle Shaft, and are used with L44610 Bearing Cups. These are used on Tie-Down #1350, and #1750 Hubs

UNIVERSAL MODEL: L44649

TIE DOWN MODEL: #11054

MODEL: CFAXLE-BRG(1-1/16")-INNER/OUTER

Used on

ALL COM-FAB PWC, JON BOAT, AND CANOE/KAYAK TRAILER MODELS

General

1/2" x 2.06" x 4.31" Galvanized U-Bolt

General

1/2"-13 x 2.06" x 4.31" Zinc U-Bolt

This item is part of the BATIE190Z Tie Plate Kit used to secure 5-Leaf Slipper Springs (1,250 lb) to 2" Square Black Powder Coated Axle Tubing. These can also be used with a Tie Down 7000# Zinc Axle Tie Plate.

TIE DOWN MODEL: #84404Z

MODEL: CFAXLE-UBLT(2.0SQ-Z)

Used on

General

1/2"-20 Long Chrome Acorn Lug Nut (Set of 5)

These are used on 1 1/2-20" Threaded Studs with a Long Stainless Steel Cap for T09/BM V-Spoke Rim on an ST175/80R13 D Load Range 13" Aluminum Tire and Wheel, but is optional for all trailer models.

MODEL: CFAXLE-NUT(LUG-CHROME)

Optional for

ALL COMFAB TRAILER MODELS

General

1/2″-20 Lug Nut (Set of 5)

These are used for mounting tires on all trailer models to 1 1/2"-20 Threaded Stud.

MODEL: CFNUTLUG

Used on

ALL COM-FAB TRAILER MODELS WITH SILVER E-COAT OR GALVANIZED WHEELS

General

- Two of these are used with 1/4″ Zinc Nuts to mount TecNiq 8 Function 6" LED Tail Lights & TecNiq 7 Function 6" LED Tail Lights to all current Com-Fab Trailer Models

- Two of these are used with 1/4″ Zinc Nuts to mount Dry Launch Submersible Tail Lights to Pre-2018 Com-Fab trailer models.

MODEL: CFBLTLIGHT

Used On

ALL COM-FAB TRAILER MODELS

General

1/4″-20 Thread External Tooth Locknut, Zinc Nut for Tail Lights

- Two of these are used with 1/4″- 20 Tail Light Bolts to mount TecNiq 8 Function 6" LED Tail Lights to all current Com-Fab Trailer models.

- Two of these are used with 1/4″- 20 Tail Light Bolts to mount Dry Launch SP7 Red Tail Lights to all Pre-2018 Com-Fab trailer models.

- One of these is used w/ 2-3/4"-20 Thread Bolts to secure PWT winch strap to crank winch.

MODEL: CFNUT1/4LOCKZ

Used on

ALL COM-FAB TRAILER MODELS

General

10 ft Walk Board Black Marine Carpet

Protective carpeting for the 2″ x 8″ x 10′ Black Marine Carpeted Center Walk Board used on all of our Double PWC Trailer Models.

11 ft by 14.4 in to fully cover the walk board

Used on

General

10" Galvanized Adjustable Bolster Bunk Bracket

These are optional Bolster Brackets for all Jon Boat Trailer models.

Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: #86131G

MODEL: CFBRKTBLSTR-10

Optional for

General

Black Marine Carpet 10.25" Width

$2/ft in 100 ft rolls

- This carpet is used for bunks on all of our PWC Trailer, and Jon Boat Trailer models. It is optional for our Pontoon Trailer models and Canoe/Kayak Angler Kits.

If you are purchasing this carpet it needs to be a foot longer than the board itself.

This carpet comes in these specific sizes as well:

- 5 ft Bunk Board Black Marine Carpet

- 6 ft Bunk Board Black Marine Carpet

- 7 ft Bunk Board Black Marine Carpet

MODEL: CFBNKCOVER-CARPET(10.25)

Used on

Optional for

General

1000 lb Black Powder Coated PWC Trailer Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1000B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

PWT-800B

General

1000 lb Galvanized PWC Trailer Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800G, and all Jon Boat Trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1000G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

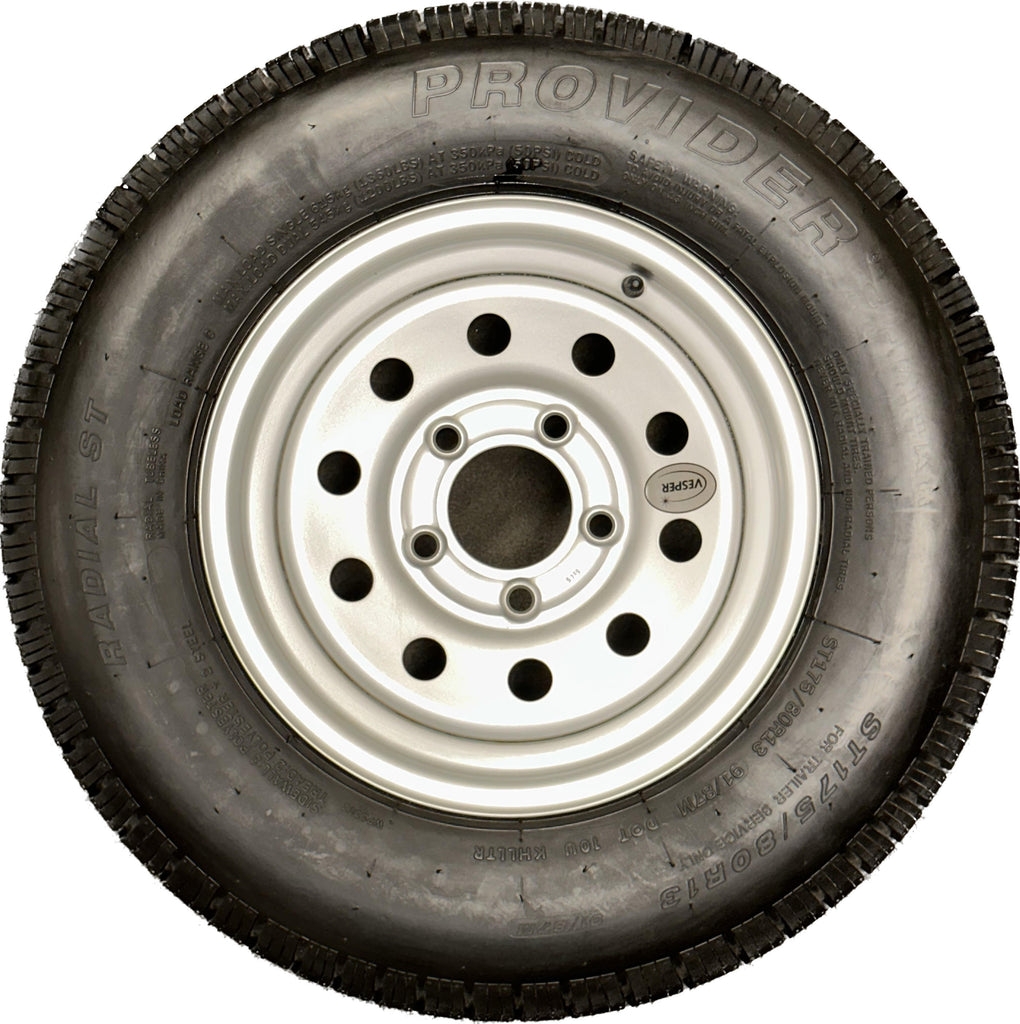

13" Silver E-Coat Tire & Wheel ST175/80R13 C Load Range-Provider

 This item is used on PWT-2213B, and PWT-2214B trailer models. Tire Capacity of 1360lbs (615kg). Speed rating of 81 mph. Max 50 PSI.

13" White Tire & Wheel ST175/80D13 C Load Range

This item is used on PWT-2213, and PWT-2214 trailer models. Tire Capacity of 1360lbs (615kg). Speed rating of 81 mph. Max 50 PSI.

General

ST175/80R13 D Load Range 13″ Aluminum Tire & Wheel 65 psi

This item is an upgradable option for all Trailer Models with 13" Tires. Speed rating is 81 mph.

MODEL: CFTST175RLRD-VSPOKE

Upgrade for

General

ST175/80D13 C Load Range 13″ Galv. Tire & Wheel 65 psi

SThis item is used on PWT-2213G, PWT-2214G, and our smaller Pontoon Boat Trailer models. Speed rating is 81 mph

MODEL: CFTST175DLRC-G

Used on

General

ST175/80R13 D Load Range 13″ Galvanized Tire & Wheel 65 psi

This item is used on our PT-2426, and PT-2628 Trailer Models, but is also an upgradable option for all Trailer Models with 13" Tires. Speed rating is 81 mph.

MODEL: CFT175DLRD-G

Used on

Upgrade for

General

ST175/80D13 C Load Range, 13″ Silver E-Coat Finish Tire & Wheel 50 psi - Kenda/Loadstar

This item is used on PWT-2213B, and PWT-2214B trailer models. Tire Capacity of 1360lbs (615kg). Speed rating of 81 mph. Max 50 PSI.

MODEL: CFT175DLRC-S

Used on
