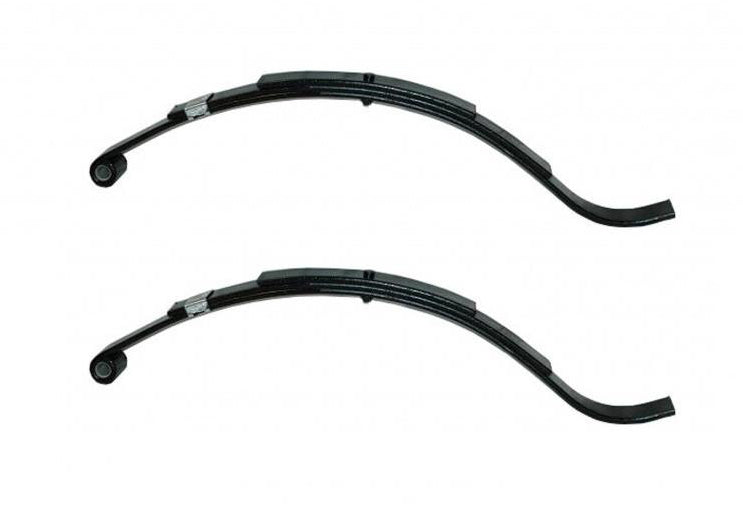

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

MODEL: CFAXLE5-LSPRNG(SF)

MPN: Dexter 72-13086 or TDE 13086

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3-Leaf Slipper Springs 750 lb Maximum Capacity (Qty 2)

- This item is mounted to the 1500 lb Galvanized Trailer Axle, as well as the 1500 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

- This item is mounted to the 1500 lb Black Powder Coated Trailer Axle with a Zinc Tie Plate Kit.

MODEL: CFAXLE-LSPRNG(3-SF)

MPN: TDE 13087 or Dexter 072-13087

Note: Springs will be replaced with Dexter 072-119-00 750lb 3-Leaf Springs in the near future.

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3/8″- 16 Galvanized Tri-Lock Nut

This item pairs with any 3/8"-16 Thread Galvanized Bolt or U-Bolt.

This item is part of these kits:

– Galvanized Winch Assembly Mounting Kit

– Galvanized Tie Plate Kit for 1.5" Square Axle Tubing

– 1000G - Bunk Mounting Kit

– 2212G - Bunk Mounting Kit

– 2212G - Fender Mounting Kit

– 2213G - Bunk Mounting Kit

– 2213G - Fender Mounting Kit

– Jon Boat Trailer Bunk Mounting Kit

– Jon Boat Trailer Fender Mounting Kit

– Jon Boat Trailer Bow Support Bunk Mounting Kit

– 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFNUT3/8TRILOCK

Used on

General

2-Leaf Slipper Springs w/ Radius 550 lb Maximum Capacity (Qty 2)

This item is mounted to the 1000 lb Galvanized Trailer Axle, and the 1000 lb Black Powder Coated Trailer Axle using a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13070

MODEL: CFAXLE2-LSPRNG(SL)

MPN: TDE 13070 or Dexter 072-13070

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3/8"-16 x 1.56" x 3.63" U-Bolt, Galvanized - For Standard 1.5" SQ Tubing Axles

This item is part of the Galvanized Tie Plate Kit used to mount 3-Leaf Slipper Springs to Galvanized 1.5" Square Axle Tubing.

MODEL: CFAXLE-UBLT(1.5SQ-G)

MPN: TDE 83002G

Used on

General

4-Leaf Slipper Springs 1000 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2000 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

DEXTER MODEL: #13071

MODEL: CFAXLE-LSPRNG(4-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

Tie Down BATIE 190G Galvanized Tie Plate for 2" Square Axle Tubing (up to 2500lb Axles)

This item is part of the BATIE190G Galvanized Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Galvanized Trailer Axles.

MODEL: CFAXLE-TIEPLATE(5-G)

MPN: 012-070-51 or 012-BATIE190G or BATIE190G

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

7000# Galvanized Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

This item is part of the 7000# Galvanized Tie Plate Kit used to mount Double Eye Leaf Springs on to 3500 lb Hydraulic Disc Brake Trailer Axles, 4250 lb Hydraulic Disc Brake Trailer Axles, or 2900 lb Idler Trailer Axles.

MODEL: CFAXLE-TIEPLATE(7000-G)

MPN: TDE 44849DG

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

3/8"-16 x 1.56" x 3.63" U-Bolt, Zinc-Plated - For Standard 1.5" SQ Tubing Axles

This item is part of the Zinc Axle Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

MODEL: CFAXLE-UBLT(1.5SQ-Z)

MPN: TDE 83002-1Z

Used on

General

Axle Tie Plate, Galvanized for 1.5" Square Tubing Trailer Axles (up to 2000lb Axles)

This item is part of the Galvanized Axle Tie Plate Kit used to mount 3-Leaf Slipper Springs to 1500 lb Galvanized Trailer Axles, and to 1500 lb Extended Galvanized Trailer Axles.

TIE DOWN MODEL: #44556G

MODEL: CFAXLE-TIEPLATE(3-G)

MPN: TDE 44556G or Dexter 012-44556

Specifications

Axle Size: 1-1/2" Square Axle

U-Bolt Size: 3/8"-16 x 1.56 x 3.63

Dimensions: 3" x 3" x 3/16"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 7/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

1/2"-13 x 2.06" x 4.31" U-Bolt, Galvanized - Used on 2" Tubing Axles (up to 3.5K)

General

4-Leaf Double Eye Springs 1850 lb Maximum Capacity

These are mounted to the 2900 lb Idler Trailer Axle, or the 3500 lb Hydraulic Disc Brake Trailer Axle using a 7000# Galvanized Tie Plate Kit. These are used on all of our Single, and Tandem Axle Pontoon Boat Trailer models.

Specifications

Length: 20.00"

Leaf Width: 1.75"

Arch Height: 3.00"

Bushing Type: Nylon

Used on

General

Axle Tie Plate, Zinc-Plated for 1.5" Square Trailer Axle (Powder Coat, up to 2000lb Axles)

- This item is part of the Zinc Tie Plate Kit used to mount 3-Leaf Slipper Springs (750 lb) to Black Powder Coated 1.5" Square Axle Tubing used on PWT-1000B, and PWT-1100B trailer models.

- The same kit is used to mount 2-Leaf Slipper Springs (550 lb) to Black Powder Coated 1.5" Square Axle Tubing used on the PWT-800 model.

Specifications

Axle Size: 1-1/2" Square Axle

U-Bolt Size: 3/8"-16 x 1.56 x 3.63

Dimensions: 3" x 3" x .21"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 7/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

Used on

General

1/2"-13 Thread Nylock Nut, Zinc-Plated

This item is part of the BATIE190Z Zinc Tie Plate Kit used to mount 3-Leaf Slipper Springs (750 lb) to Black Powder Coated 2.0" Square Axle Tubing.

MODEL: CFAXLE-NUT(1/2NYLOCK-Z)

Used on

c-General

3/8"-16 Thread Nylock Nut, Zinc-Plated

This item is part of the Zinc Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

MODEL: CFAXLE-NUT(3/8NYLOCK-Z)

Used on

General

Axle Tie Plate, Zinc-Plated for 2" Square Axle Tubing (Powder Coat, up to 2500lb Axles)

This item is part of the BATIE190Z Zinc Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Black Powder Coated Trailer Axles.

MODEL: CFAXLE-TIEPLATE(5-Z)

MPN: 012-070-51 or 012-BATIE190Z or BATIE109Z

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

Used on

General

7000# Zinc Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

TIE DOWN MODEL: 44849DZ

MODEL: CFAXLE-TIEPLATE(7000-Z)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

General

1/2"-13 x 2.06" x 4.31" U-Bolt, Zinc-Plated - Used on 2" Tubing Axles (up to 3.5K)

This item is part of the BATIE190Z Tie Plate Kit used to secure 5-Leaf Slipper Springs (1,250 lb) to 2" Square Black Powder Coated Axle Tubing. These can also be used with a Tie Down 7000# Zinc Axle Tie Plate.

TIE DOWN MODEL: #84404Z

MODEL: CFAXLE-UBLT(2.0SQ-Z)

MPN: TDE 84404Z

Used on
