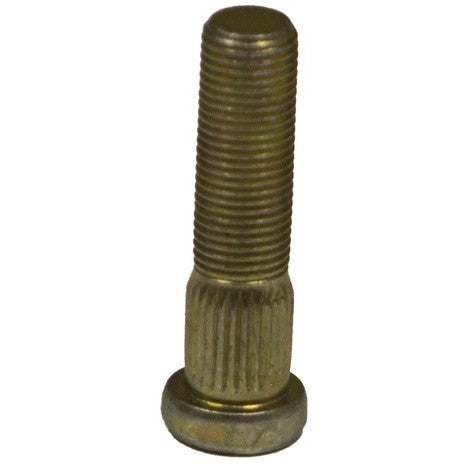

Lug Nut Stud 1-1/2"-20

General

Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS

General

5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

It is used for mounting Bunk Boards to Galvanized Angular Swivel Brackets, and Pontoon Boat Trailer Bunk Brackets on all trailer models.

MODEL: CFSCRWLAG-5/16-0150

Used on

ALL COM-FAB TRAILER MODELS

General

Locking Spare Tire Bracket, fits 3″ Width Tubing

This item is used to lock down, and transport a spare tire on all Com-Fab trailer models. Lock not included.

MODEL: CFSTB-TOP

Optional for

ALL COM-FAB TRAILER MODELS

General

1/2″-20 Lug Nut (Set of 5)

These are used for mounting tires on all trailer models to 1 1/2"-20 Threaded Stud.

MODEL: CFNUTLUG

Used on

ALL COM-FAB TRAILER MODELS WITH SILVER E-COAT OR GALVANIZED WHEELS
