Bunks and Mounting

General

2212B - Bunk Mounting Kit

These are all of the requisite materials needed to mount a 2″ x 4″ x 5′ Black Marine Carpeted Bunk Board onto a 2212B trailer model.

Materials Include:

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-2212B

Used on

PWT-2212B

General

Jon Boat Trailer Bunk Mounting Kit

This kit contains all of the requisite materials needed to mount a 2″ x 4″ x 6′ Black Marine Carpeted Bunk Board onto every Jon Boat Trailer model.

Materials Include:

2 – 3/8″-16 x 3.06" x 2.38″ Galvanized U-Bolt

2 – 8″ Adjustable Bolster Bunk Bracket

2 – 3/8″-16 x 1" Galvanized Hex Head Bolt

2 – Galvanized Angular Swivel Bracket

6 – 3/8″-16 Galvanized Tri-Lock Nut

6 – 3/8″-16 Galvanized Flat Washer

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-JBT

Used on

General

8″ Galvanized Adjustable Bolster Bunk Bracket

This item is part of these kits:

- Jon Boat Trailer Bunk Mounting Kit

- Jon Boat Trailer Bow Support Mounting Kit

- 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: 86130G

MODEL: CFBRKTBLSTR

Used on

General

10" Galvanized Adjustable Bolster Bunk Bracket

These are optional Bolster Brackets for all Jon Boat Trailer models.

Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: #86131G

MODEL: CFBRKTBLSTR-10

Optional for

General

Jon Boat Trailer Bow Support Bunk Mounting Kit

These are all of the requisite materials needed to mount a 2″ x 4″ x 2′ Black Marine Carpeted Bow Support Bunk onto all Jon Boat Trailer models.

Materials Include:

1 – 3/8″ x 3" x 4.5″ Galvanized U-Bolt

2 – 8″ Galvanized Adjustable Bolster Bunk Bracket

4 – 3/8″-16 x 1″ Galvanized Hex Head Bolts

2 – Galvanized Angular Swivel Bracket

4– 3/8″-16 Galvanized Tri-Lock Hex Nut

4 – 3/8″ Galvanized Flat Washer

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

1 - 5" x 1.25" x .25" Galvanized Flat Plate w/ 9/16" Holes

MODEL: CFBNKKIT-BOWSPRT

Used on

General

3/8″-16 x 3.06" x 4.5″ Galvanized U-Bolt

This item is part of these kits:

- Galvanized Winch Assembly Mounting Kit

- Jon Boat Trailer Bow Support Bunk Mounting Kit

MODEL: CFUBLT3/8X4.5G

Used on

General

'River Hawk' Jon Boat Trailer Bunk Mounting Kit

This kit contains all of the requisite materials needed to mount a 2″ x 4″ x 10′ Black Marine Carpeted Bunk Board onto the JBT-1600 'River Hawk' Style Jon Boat Trailer model.

Materials Include:

3 – 3/8″-16 x 3.06" x 2.38″ Galvanized U-Bolt

3 – 8″ Adjustable Bolster Bunk Bracket

3 – 3/8″-16 x 1" Galvanized Hex Head Bolt

3 – Galvanized Angular Swivel Bracket

6 – 3/8″-16 Galvanized Tri-Lock Nut

9 – 3/8″-16 Galvanized Flat Washer

6 – 5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-JBT(HAWK)

Used on

JBT-1600 'River Hawk'

General

Small Galvanized Pontoon Bunk Bracket #44012

This item is is used for:

– Mounting 2″ x 4″ or 2″ x 6″ Bunk Boards on Minitoon Trailer Frames

– Mounting 2″ x 4″ or 2″ x 6″ Center Bunk Boards on Select Tritoon Trailer Frames*

*Some boats may have deeper center toons than outside toons.

TIE DOWN MODEL: #44012

MODEL: CFBRKTPTBUNK(SMALL)

Used on

PT-1400

General

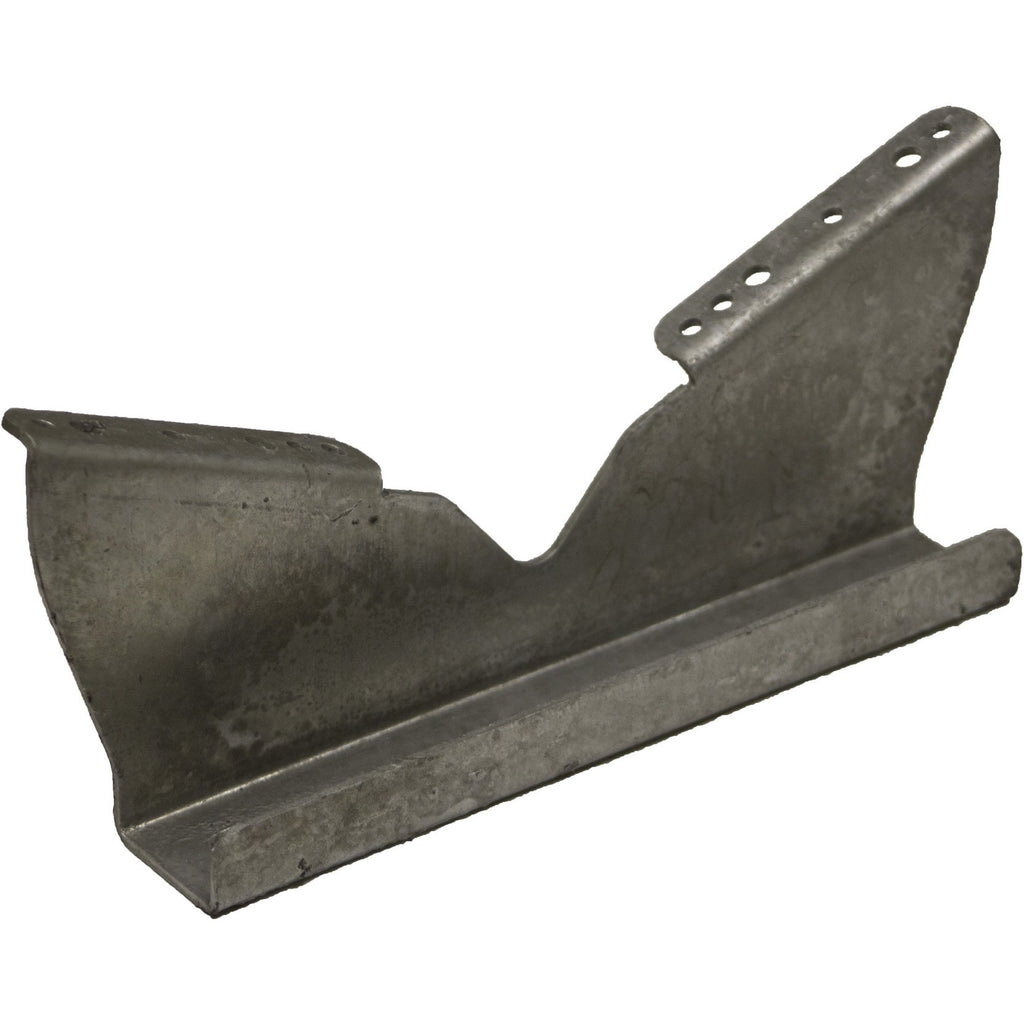

Heavy Duty Pontoon Bunk Bracket #43747

This item is optional for all Pontoon Boat Trailer models. It fits 2' x 4' and 2' x 6' boards.

Specifications

Length: 15.4"

Base Length: 13.13"

Width: 3"

Height: 6.07"

Optional for

General

Flat Pontoon Bunk Bracket #44879

Length: 9.02"

Base Length: 8.38"

Width: 3"

Height: 5.25"

Optional for

General

3/8″-16 x 2.06″ x 5.25″ Zinc U-Bolt

This item is used with a 4" x 1" x .25" Galvanized Flat Plates w/ 1/2" Holes, and a 3/8"-16 Serrated Zinc Flange Nuts to mount Pontoon Boat Trailer Bunk Brackets onto all Pontoon Boat Trailer models.

See: Tall Galvanized Pontoon Boat Trailer Bunk Bracket Kit

MODEL: CFUBLT3/8X2.06X5.25Z

Used on

General

Tall Galvanized Pontoon Boat Trailer Bunk Bracket Kit

This kit is a segment of what is used to mount bunk boards to all Pontoon Boat Trailer frames.

Materials Include:

1 - Tall Galvanized Pontoon Boat Trailer Bunk Bracket

1 - 3/8″-16 x 2.06″ x 5.25″ Zinc U-Bolt

1 - 4" x 1" x .25" Galvanized Flat Plate w/ 1/2" Holes

2 - 3/8"-16 Flange Top Lock Nut, Zinc

4 - 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBRKTPTBUNK(TALL)KIT

Used on

General

10 ft Walk Board Black Marine Carpet

Protective carpeting for the 2″ x 8″ x 10′ Black Marine Carpeted Center Walk Board used on all of our Double PWC Trailer Models.

11 ft by 14.4 in to fully cover the walk board

Used on

This kit contains all of the materials necessary to mount a bunk on one of our canoe or kayak trailers. The kit contains:

2 – 3/8”-16 x 2.06” x 2.88” Zinc U-Bolt
2 – 4" x 1" x .25" Zinc Flat Plate
2 – Galvanized Angular Swivel Bracket
4 – 3/8"-16 Serrated Zinc Flange Nut

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

General

10 ft Walk Board Black Marine Carpet

Protective carpeting for the 2″ x 8″ x 10′ Black Marine Carpeted Center Walk Board used on all of our Double PWC Trailer Models.

$2.25/ft in 100 ft rolls

If you are purchasing this carpet it needs to be a foot longer than the board itself.

Used on

General

2″ x 4″ x 8′ Black Marine Carpeted Bunk Board

These are used for our KCT angler kits

Used along with our Angler Kayak Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-8FT

General

Black Marine Plastic 2IN X 4IN Wide

$3.40/ft

- This plastic is used for bunks on all of our Pontoon Trailer models.  It is optional for our Canoe/Kayak Angler Kits, PWC Trailer, and Jon Boat Trailer models.

If you are purchasing this Plastic it needs to be a foot longer than the board itself.

MODEL: CFBNKCOVER-PLASTIC(4IN-CA)

Used on

PWT-2214G
JBT-900
JBT-1400
JBT-1600
JBT-1600 ‘RIVER HAWK
