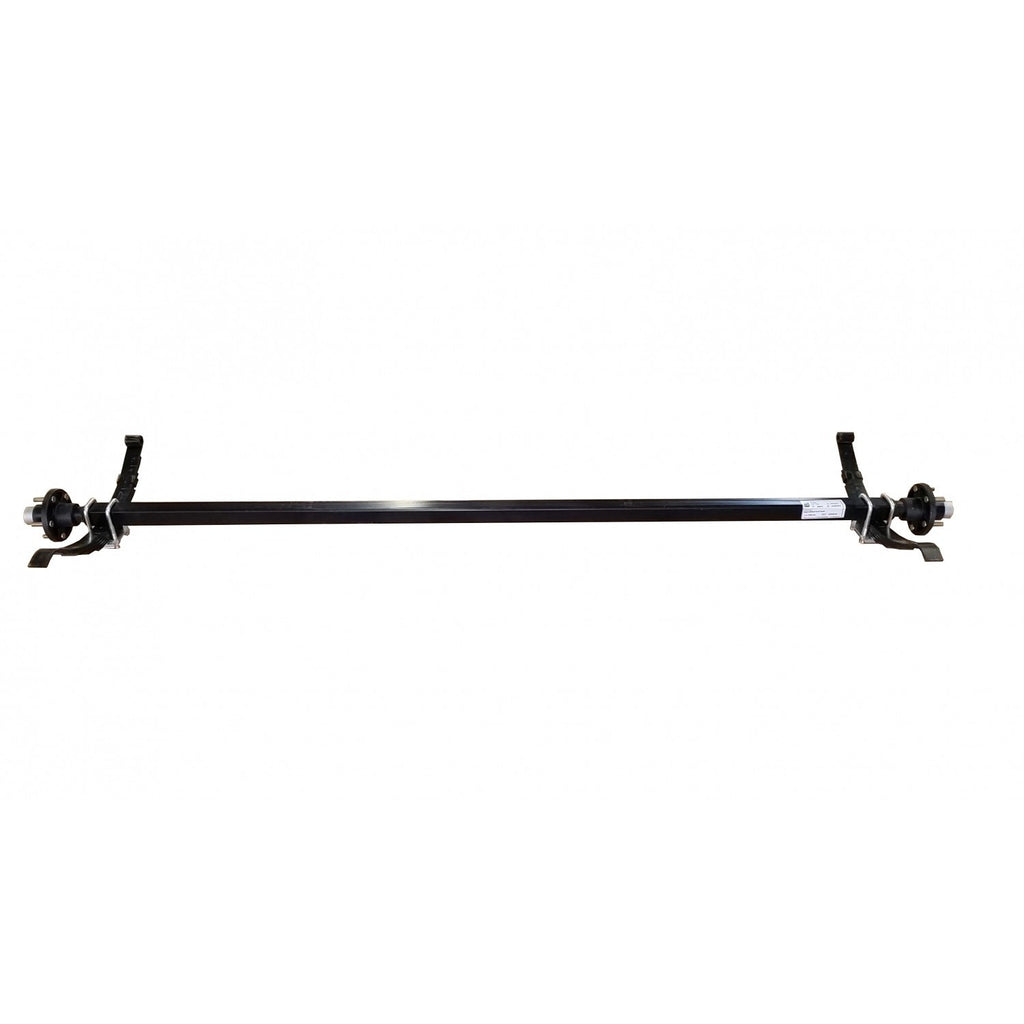

2500 lb Black Powder Coated PWC Trailer Axle w/ 545 Hubs and Springs HF 93.5 SC 83.5

General

1500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Black Powder Coated PWC Trailer 545 Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-1000B, and the PWT-1100B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1500B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.19"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

2000 lb Extended Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

This item is not shipped. Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340.

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 84.45" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-2212G trailer model with a Galvanized Axle Mounting Kit, and to the PWT-2212B trailer model with a Black Powder Coated Axle Mounting Kit

MODEL: CFAXLE2000G-EXTENDED

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 2000 lb

Hub Face: 91.5"

Spring Center: 81.5"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

3-Leaf Slipper Springs 750 lb Maximum Capacity (Qty 2)

- This item is mounted to the 1500 lb Galvanized Trailer Axle, as well as the 1500 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

- This item is mounted to the 1500 lb Black Powder Coated Trailer Axle with a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13087

MODEL: CFAXLE-LSPRNG(3-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on
